Inox Care Lift-up support rail vario,
with base plate, L = 850 mm, Mirror polished
€545.00*
*Prices excl. VAT
Article number: 2050050008
Downloads
Technical Specifications

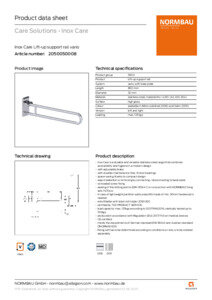

Product data sheet

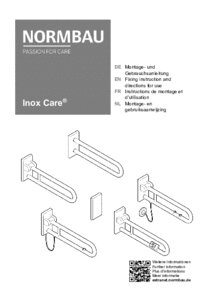

Fixing instruction and directions for use

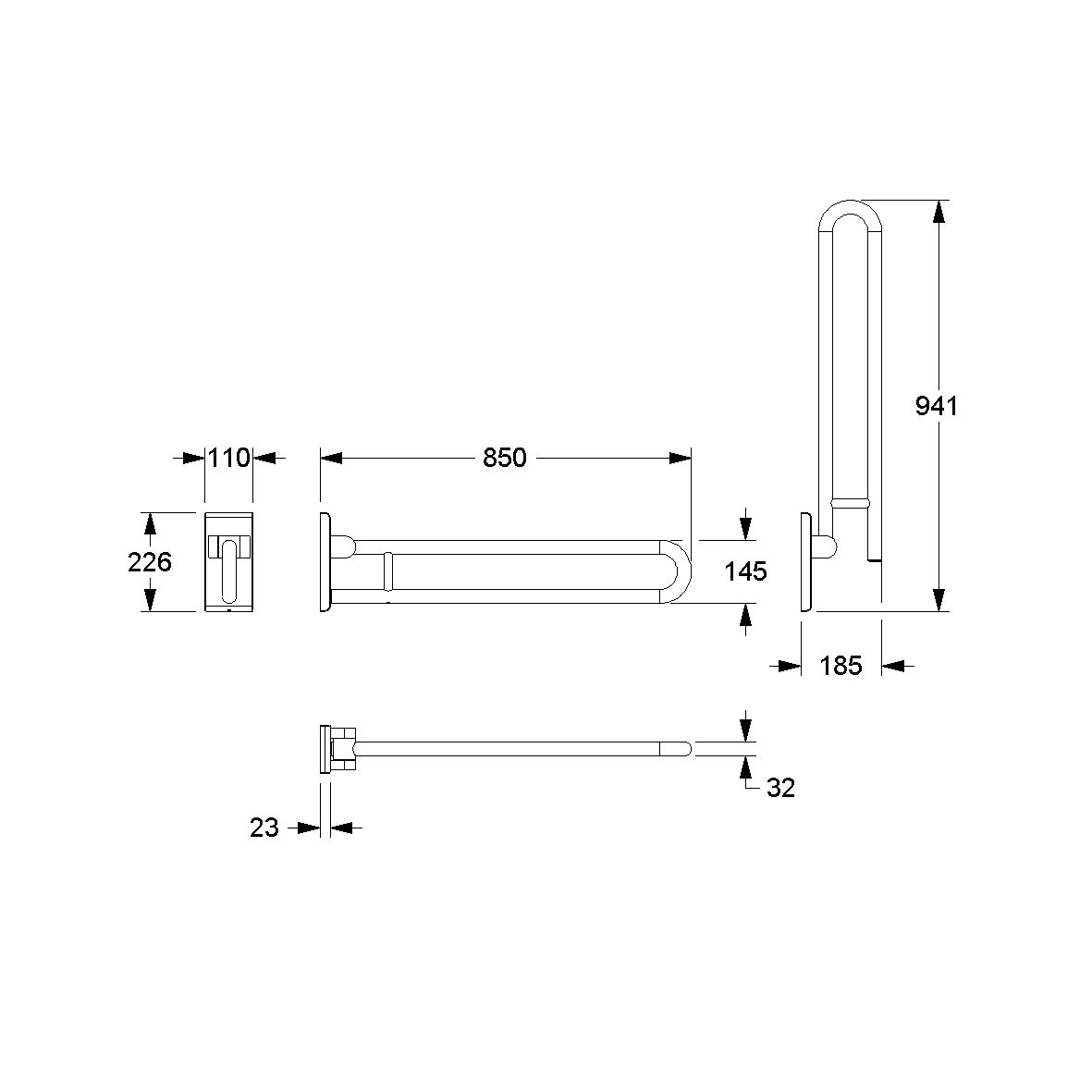

Technical Drawing
Images

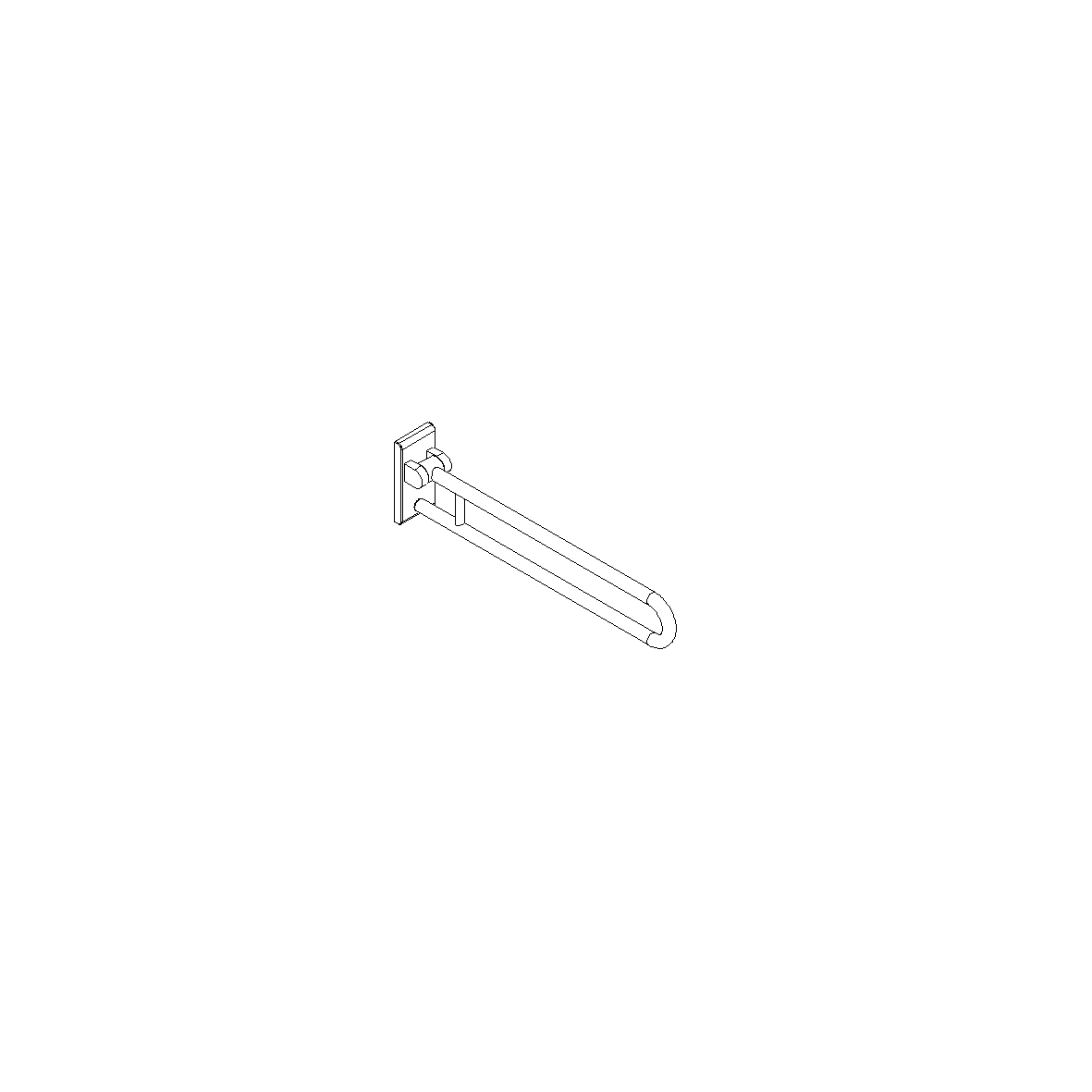

Product image
Assembly image
Situational image
Partial situational image
Overall download
ZIP file
- Inox Care is a durable and versatile stainless steel range that combines accessibility and hygiene in a modern design
- with adjustable brake
- with durable maintenance-free, friction bearings
- easy installation or removing by connecting / disconnecting to base plate
- concealed screw fixing
- sealing of the drilling points (DIN 18534-1) in conjunction with NORMBAU fixing sets 7470xxx
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- retrofittable with toilet roll holder 2050300
- certified by TÜV PRODUCT SERVICE
- load capacity: max. 125kgs according to ISO17966:2016, statically tested up to 150kgs
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up support rail
- Product group : 5500
- Base plate : with base plate
- Length L : 850 mm
- Diameter : 32 mm
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Surface : high gloss
- Version : left and right
- Colour : Mirror polished
- Colours available : available in Mirror polished (008) and Satin (009)
- Loading : max. 125 kg
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
Manufacturer
Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
