Cavere Care Lift-up support rail vario,

with base plate, with remote control, right, L = 850 mm, Cavere Metallic anthracite

€991.00*

*Prices excl. VAT

Colour
Article number: 7447284095

Downloads

Technical Specifications

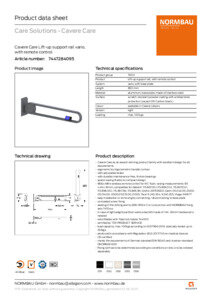

Product data sheet
PDF
Fixing instruction and directions for use
PDF
Technical Drawing
DXF DWG TIF PNG
Isometric drawing
TIF DXF PNG DWG

Images

Product image
TIF PNG
Assembly image
PNG TIF
Situational image
TIF PNG
Partial situational image
TIF PNG

Overall download

ZIP file
ZIP
  • Cavere Care as an award-winning product family with excellent design for all requirements
  • ergonomic by trigonometric handle contour
  • with adjustable brake
  • with durable maintenance-free, friction bearings
  • 868,4 MHz wireless remote control for WC flush, casing measurements: 85 x 46 x 16mm, compatible for Geberit: 115.867.00.1,115.869.00.1, 115.897.00.1, 115.898.00.1, 115.867.SN, 115.869.SN, Grohe: 38759SD0, Sanit: 05.042.00..0000, 05.014.00..0000,05.015.00..0000, Tece: 9.240.354, 9.240.355, Viega: 696177
  • easy installation or removing by connecting / disconnecting to base plate
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • retrofittable with Toilet roll holder 7449110
  • certified by TÜV PRODUCT SERVICE
  • load capacity: max. 100kgs according to ISO17966:2016, statically tested up to 150kgs
  • produced in accordance with Regulation (EU) 2017/745 on medical devices
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • Fixing set has to be determined according to conditions on site, is to be ordered separately
  • Product category : Lift-up support rail
  • Product version : with remote control
  • Product group : 7000
  • Base plate : with base plate
  • Length L : 850 mm
  • Material : aluminium
  • Material addition : base plate, made of stainless steel
  • Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
  • Version : right
  • Colour : Cavere Metallic anthracite
  • Colours available : available in Cavere colours
  • Loading : max. 100 kg
