Cavere Care Lift-up support rail vario, with base plate, L = 850 mm, Cavere Metallic anthracite

€521.00*

*Prices excl. VAT

Colour
Article number: 7447030095
  • Cavere Care as an award-winning product family with excellent design for all requirements
  • ergonomic by trigonometric handle contour
  • with adjustable brake
  • with durable maintenance-free, friction bearings
  • easy installation or removing by connecting / disconnecting to base plate
  • concealed screw fixing
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • retrofittable with Toilet roll holder 7449110
  • certified by TÜV PRODUCT SERVICE
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • Fixing set has to be determined according to conditions on site, is to be ordered separately
  • in combination with Care shower guard rails 0787015 / 0787056 also can be used as shower guard rail
  • Product category : Lift-up support rail
  • Product group : 7000
  • Base plate : with base plate
  • Length L : 850 mm
  • Material : aluminium
  • Material addition : base plate, made of stainless steel
  • Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
  • Version : left and right
  • Colour : Cavere Metallic anthracite
  • Colours available : available in Cavere colours
  • Loading : max. 100 kg

Downloads

Technical Specifications

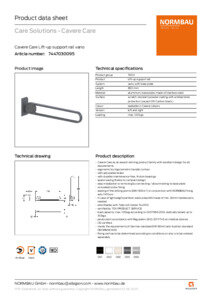

Product data sheet
