Cavere Care Lift-up support rail,

for side fixing, left, L = 850 mm, Cavere Metallic anthracite

€536.00*

*Prices excl. VAT

Article number: 7447233095

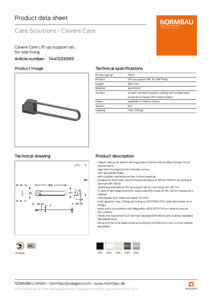

Product data sheet

Fixing instruction and directions for use

Technical Drawing

Isometric drawing

Product image

Situational image

Partial situational image

ZIP file

Cavere Care as an award-winning product family with excellent design for all requirements
ergonomic by trigonometric handle contour
with adjustable brake
with durable maintenance-free, friction bearings
suitable for front-wall, recommended distance of 650 to 700mm according to German DIN 18040
Space required behind lift-up support rail for mounting: min. 65 mm
In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
retrofittable with Toilet roll holder 7449110
load capacity: max. 100kgs according to ISO17966:2016, statically tested up to 150kgs
produced in accordance with Regulation (EU) 2017/745 on medical devices
CE-certified
meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
Fixing set has to be determined according to conditions on site, is to be ordered separately

Product category : Lift-up support rail
Product version : for side fixing
Product group : 7000
Length L : 850 mm
Material : aluminium
Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
Version : left
Colour : Cavere Metallic anthracite
Colours available : available in Cavere colours
Loading : max. 100 kg
