Cavere Care Lift-up shower seat vario,
without base plate, 462 x 450 x 230 mm, Cavere Satin beige, padded colour anthracite
€641.00*
*Prices excl. VAT
Article number: 7844452093
Downloads
Technical Specifications

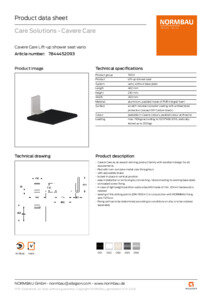

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Assembly image
Situational image
Partial situational image
Overall download
ZIP file
- Cavere Care as an award-winning product family with excellent design for all requirements
- Pad with non-corrosive metal core throughout,
- with adjustable brake
- locked in place in vertical position
- easy installation or removing by connecting / disconnecting to existing base plate
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- sealing of the drilling points (DIN 18534-1) in conjunction with NORMBAU fixing sets 7470xxx
- load capacity: max. 150kgs according to ISO17966:2016, statically tested up to 200kgs
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up shower seat
- Product group : 7000
- Base plate : without base plate
- Length : 462 mm
- Width : 450 mm
- Height : 230 mm
- Wide seat surface : 450 mm
- Depth of the seat surface : 405 mm
- Additional colour : padded colour anthracite
- Material : aluminium
- Material addition : padded made of PUR integral foam
- Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
- Colour : Cavere Satin beige
- Colours available : available in Cavere colours
- Loading : max. 150 kg
