Cavere Care Base plate vario,
with cover plate blind, 220 x 120 x 30 mm, Cavere Metallic anthracite
€91.50*
*Prices excl. VAT
Article number: 7449200095
Downloads
Technical Specifications

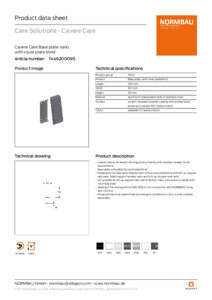

Product data sheet
Fixing instruction and directions for use

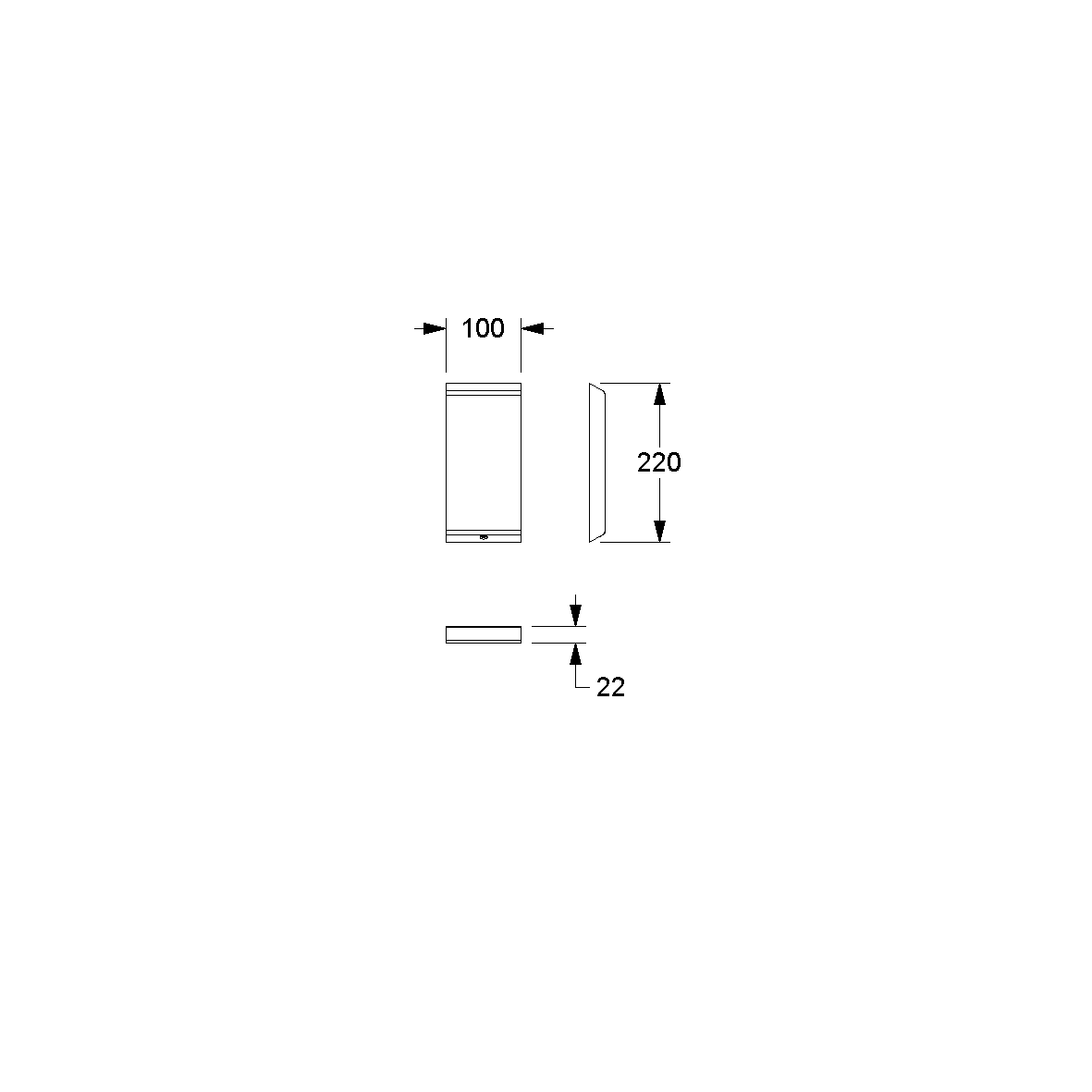

Technical Drawing

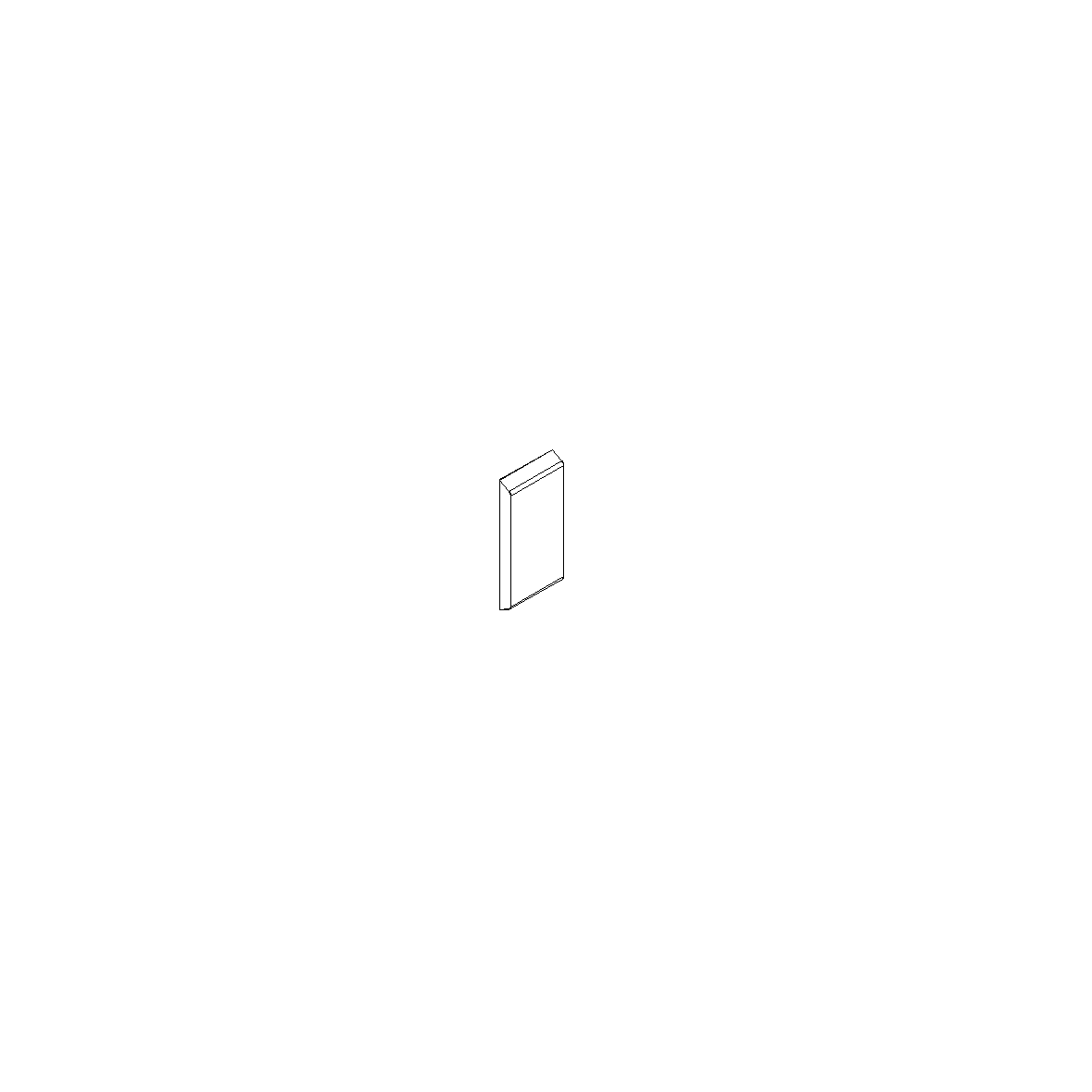

Isometric drawing
Images

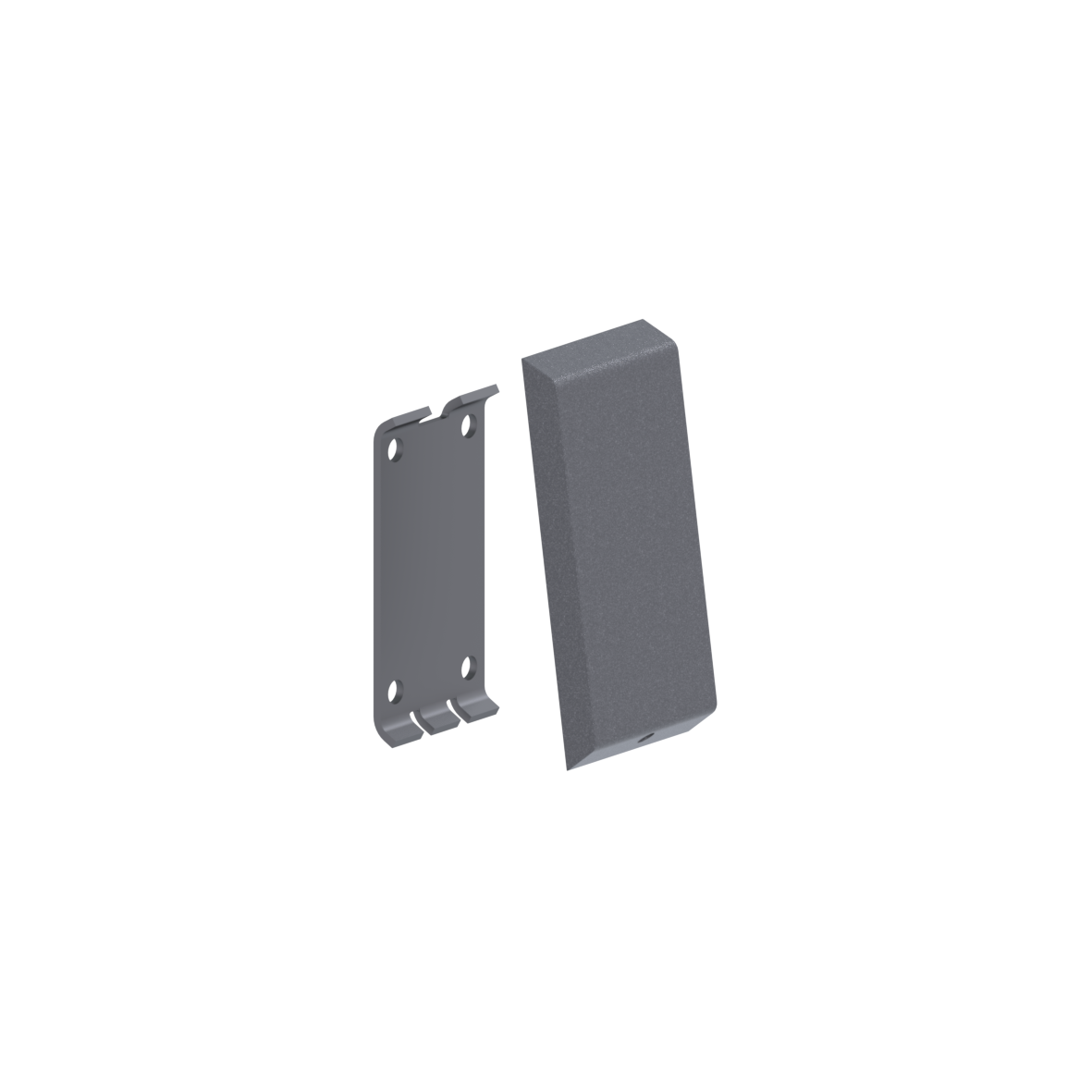

Product image
Situational image
Partial situational image
Overall download
ZIP file
- Cavere Care as an award-winning product family with excellent design for all requirements
- base plate concealed by cover plate blind
- Preparation for later easy replacement of the cover plate blind with lift-up support rails vario, Wall-support handles vario and Lift-up shower seat vario
- not suitable for lift-up support rails with E-Button vario, connection covered with mounting plate
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Base plate
- Product version : with cover plate blind
- Product group : 7000
- Length : 220 mm
- Width : 120 mm
- Height : 30 mm
- Material : aluminium
- Material addition : base plate made of stainless steel
- Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
- Colour : Cavere Metallic anthracite
- Colours available : available in Cavere colours
