Cavere Care Base plate vario,
for Lift-up support rails with E-Button, connection covered with mounting plate, 88 x 15 x 178 mm, Colourless
€56.50*
*Prices excl. VAT
Article number: 7449217000
Downloads
Technical Specifications

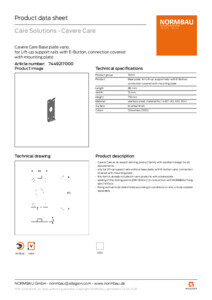

Product data sheet
Fixing instruction and directions for use

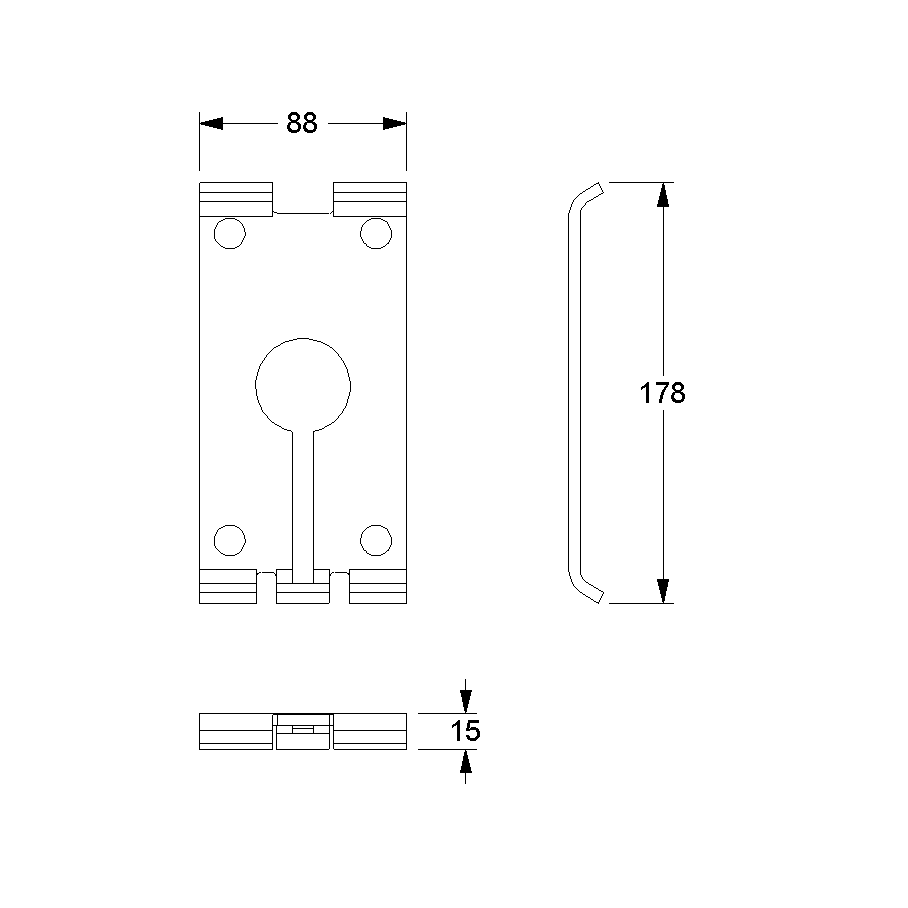

Technical Drawing

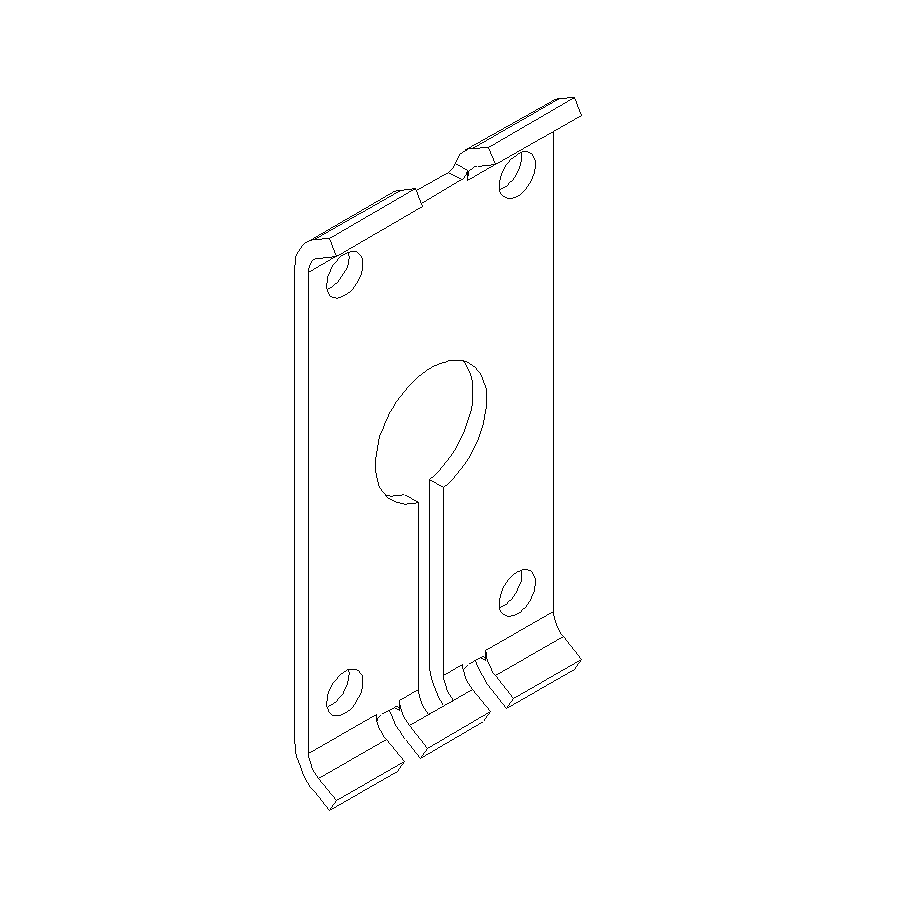

Isometric drawing
Images

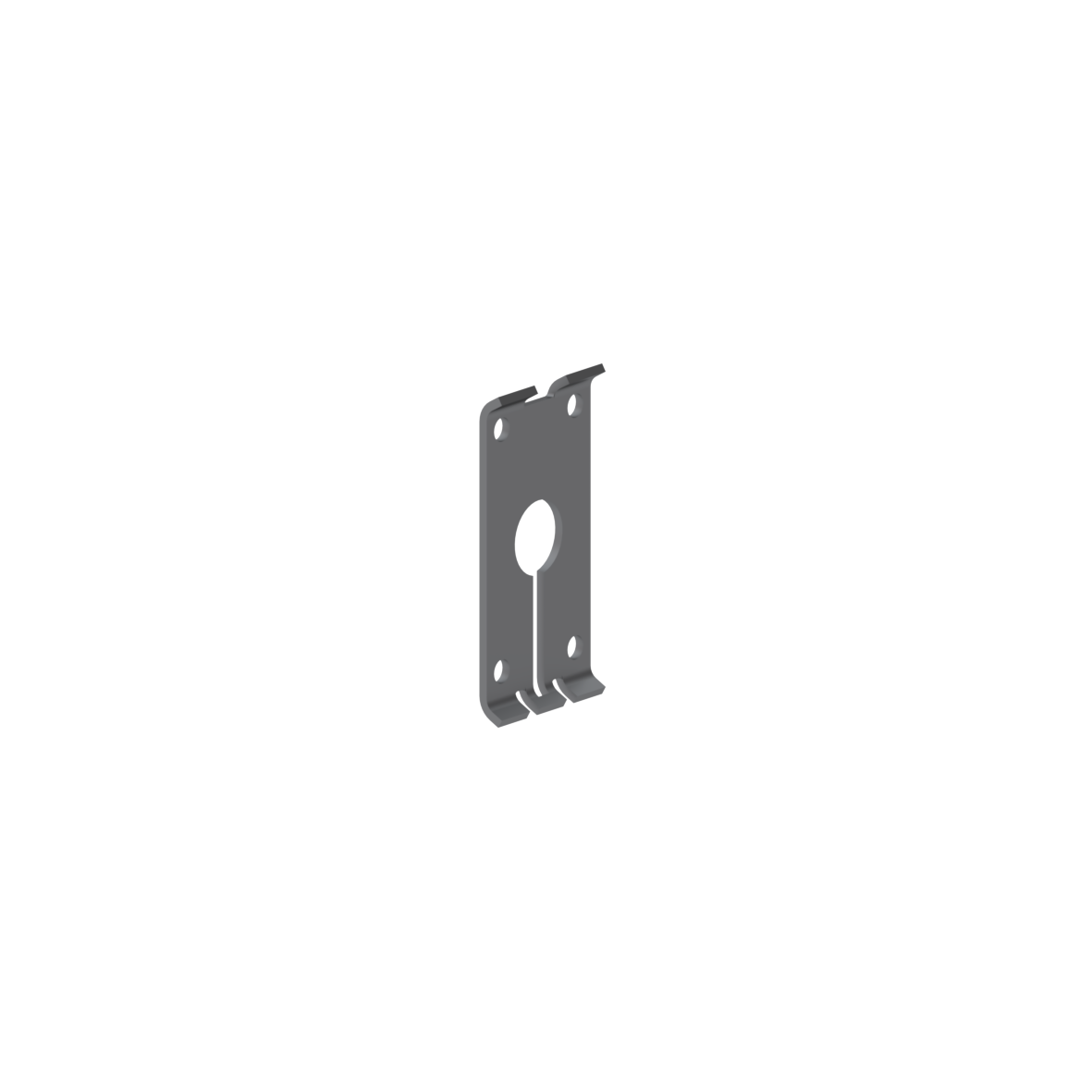

Product image
Situational image
Partial situational image
Overall download
ZIP file
- Cavere Care as an award-winning product family with excellent design for all requirements
- only for lift-up support rails without base plate, with E-button vario, connection covered with mounting plate
- this item is already included in vario products with a base plate
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Base plate
- Product version : for Lift-up support rails with E-Button, connection covered with mounting plate
- Product group : 7000
- Length : 88 mm
- Width : 15 mm
- Height : 178 mm
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Surface : brushed finish
- Colour : Colourless
