Cavere Care Base plate vario,
88 x 15 x 178 mm, Colourless
€36.75*
*Prices excl. VAT
Article number: 7449216000
- Cavere Care as an award-winning product family with excellent design for all requirements
- for vario products only without base plate
- this item is already included in vario products with a base plate
- not suitable for lift-up support rails with E-Button vario, connection covered with mounting plate
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Base plate
- Product group : 7000
- Length : 88 mm
- Width : 15 mm
- Height : 178 mm
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Surface : brushed finish
- Colour : Colourless
Downloads
Technical Specifications

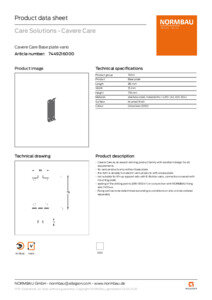

Product data sheet
Fixing instruction and directions for use

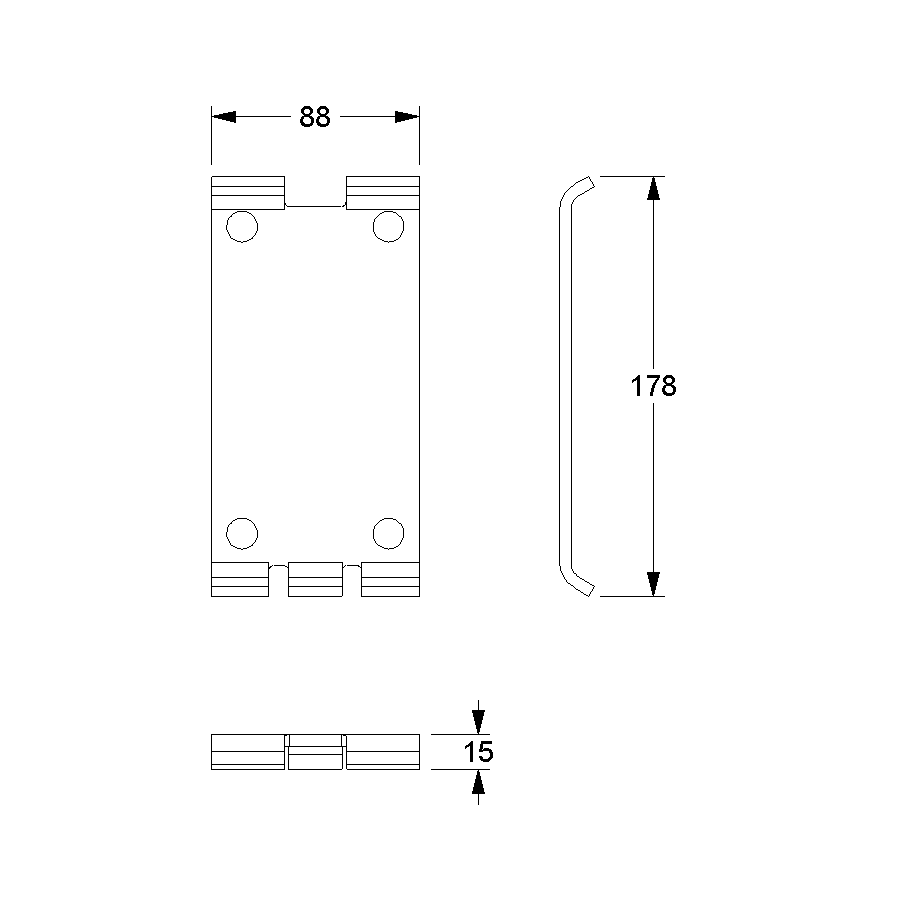

Technical Drawing

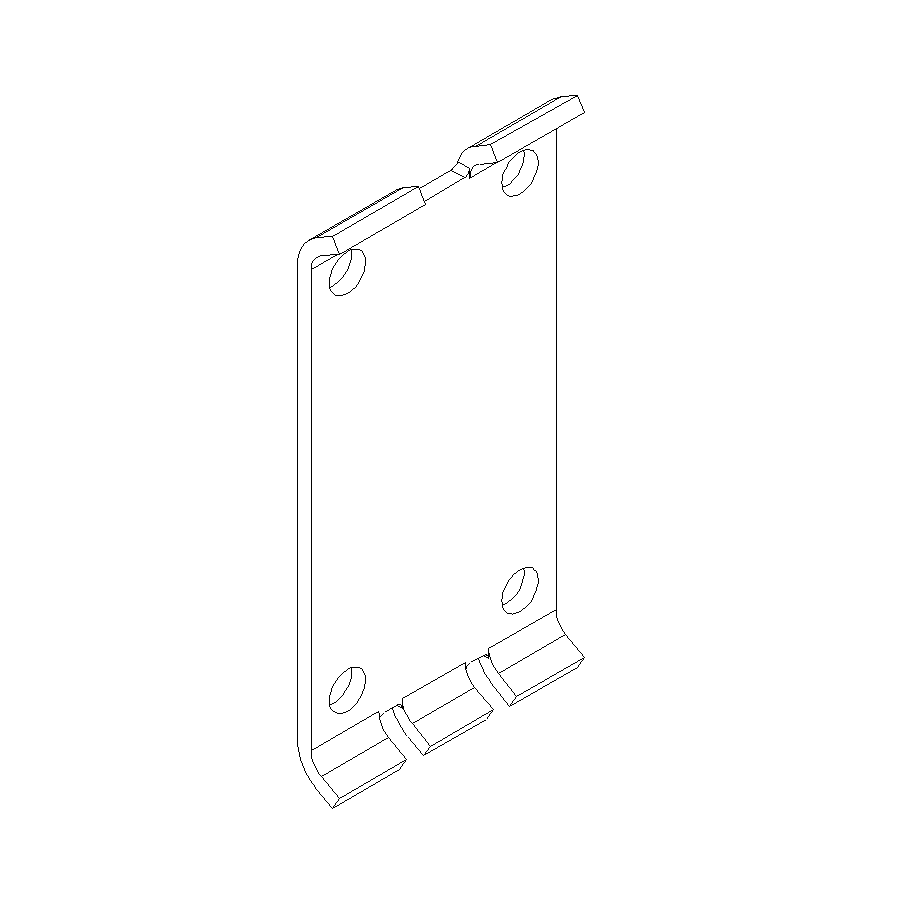

Isometric drawing
Images

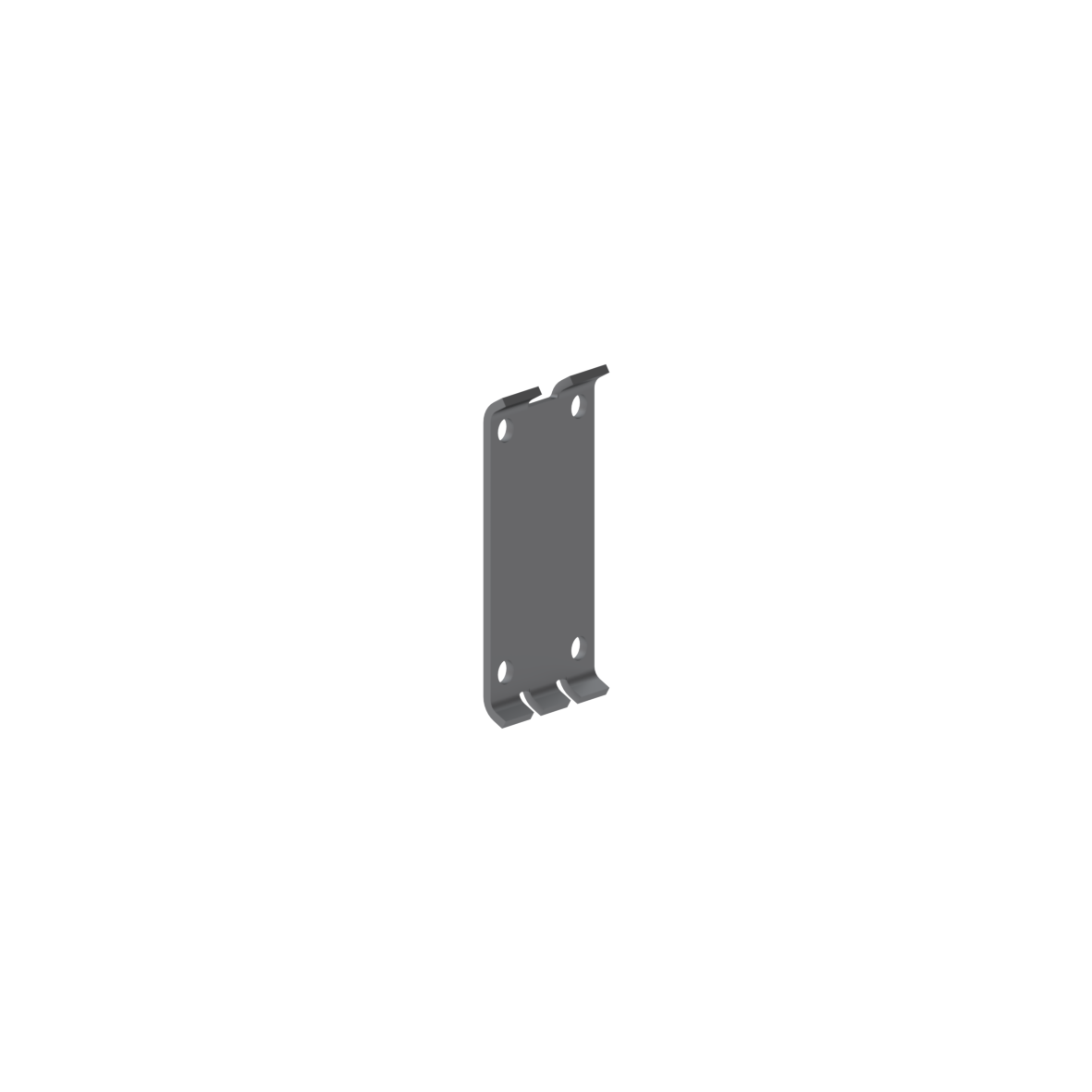

Product image
Situational image
Partial situational image
Overall download
ZIP file
Tender specification
