Ascento Lift-up shower seat vario,

with armrest, 584 x 512 x 297 mm, Ascento Dark grey

Downloads

Technical Specifications

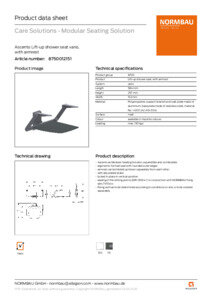

Product data sheet
Fixing instruction and directions for use

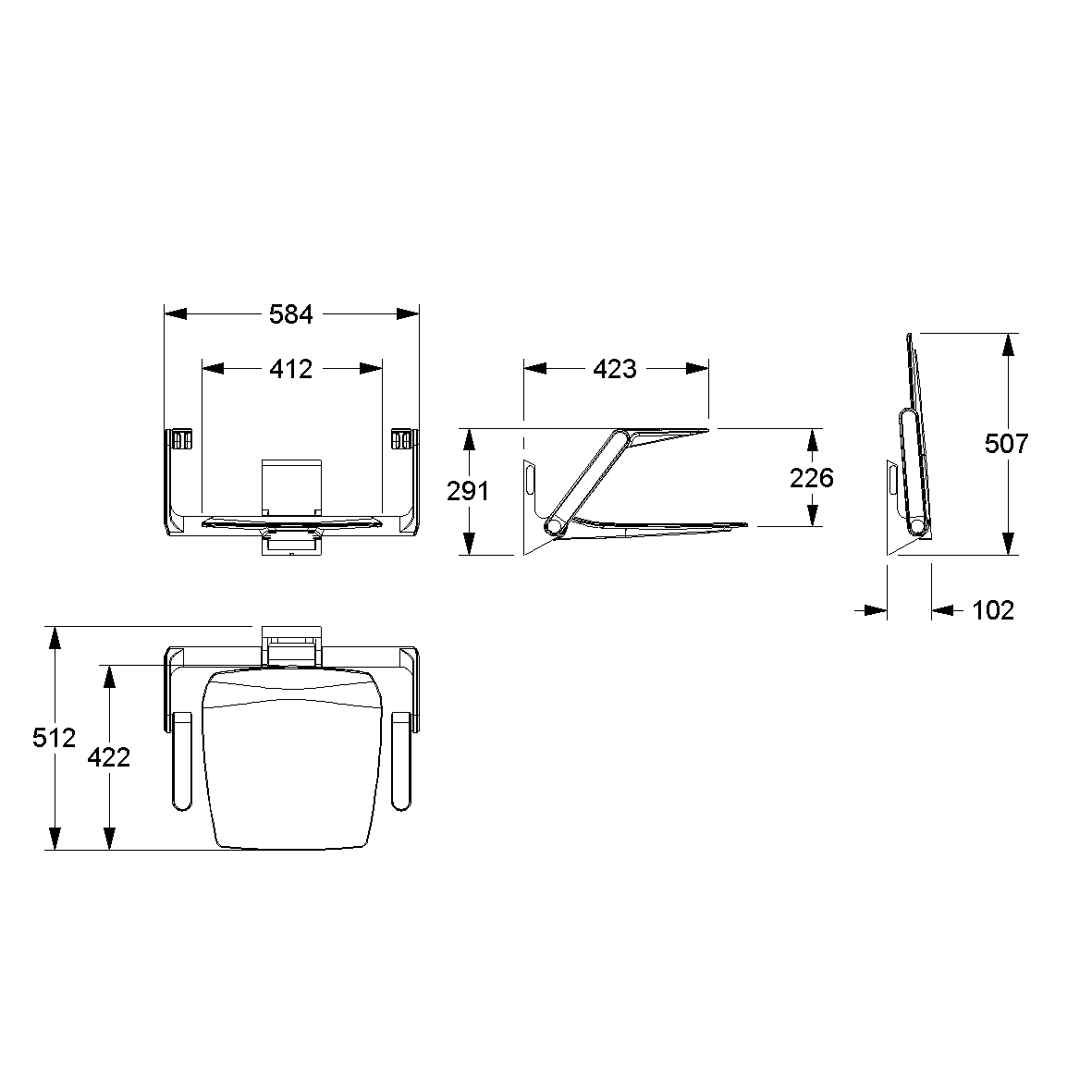

Technical Drawing

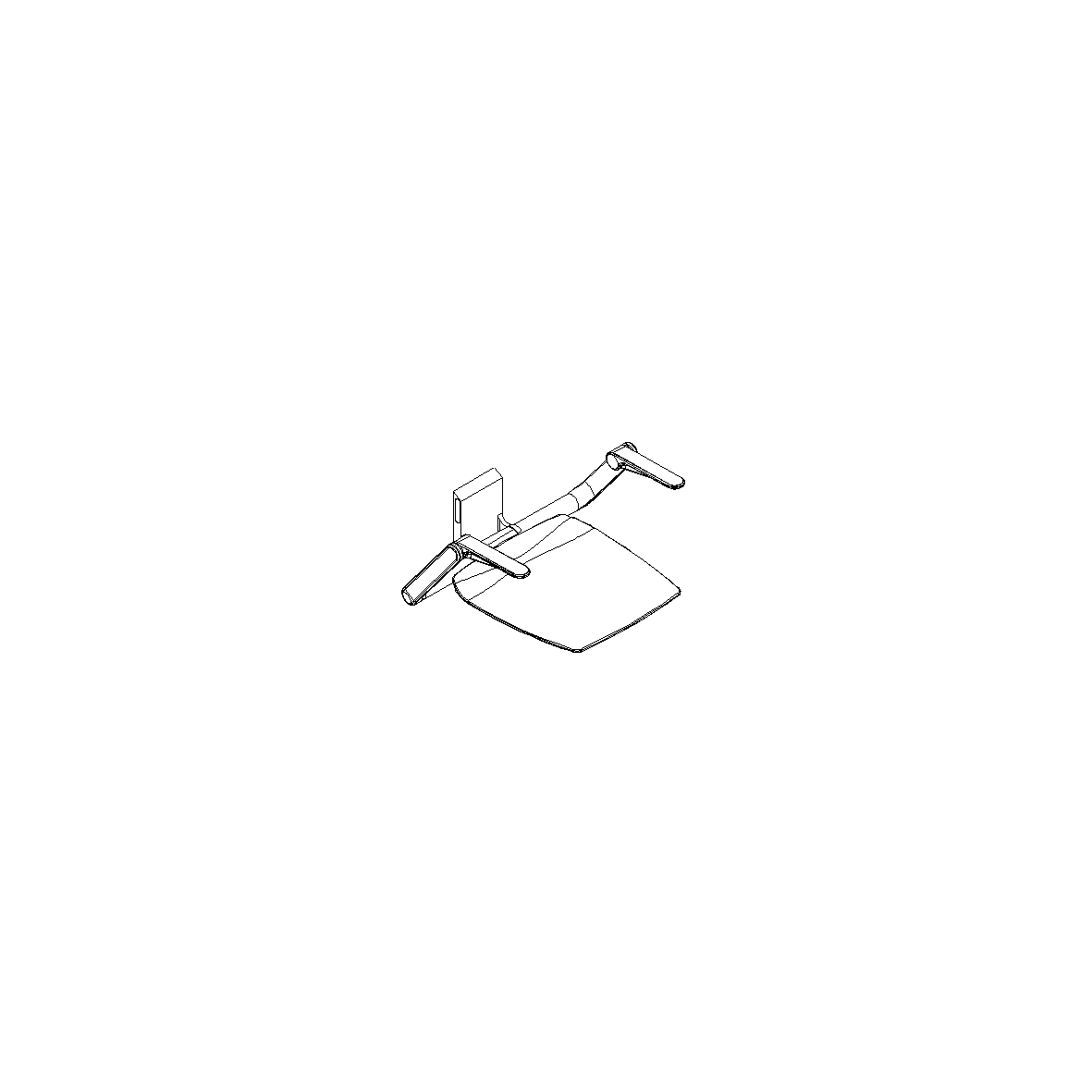

Isometric drawing

Images

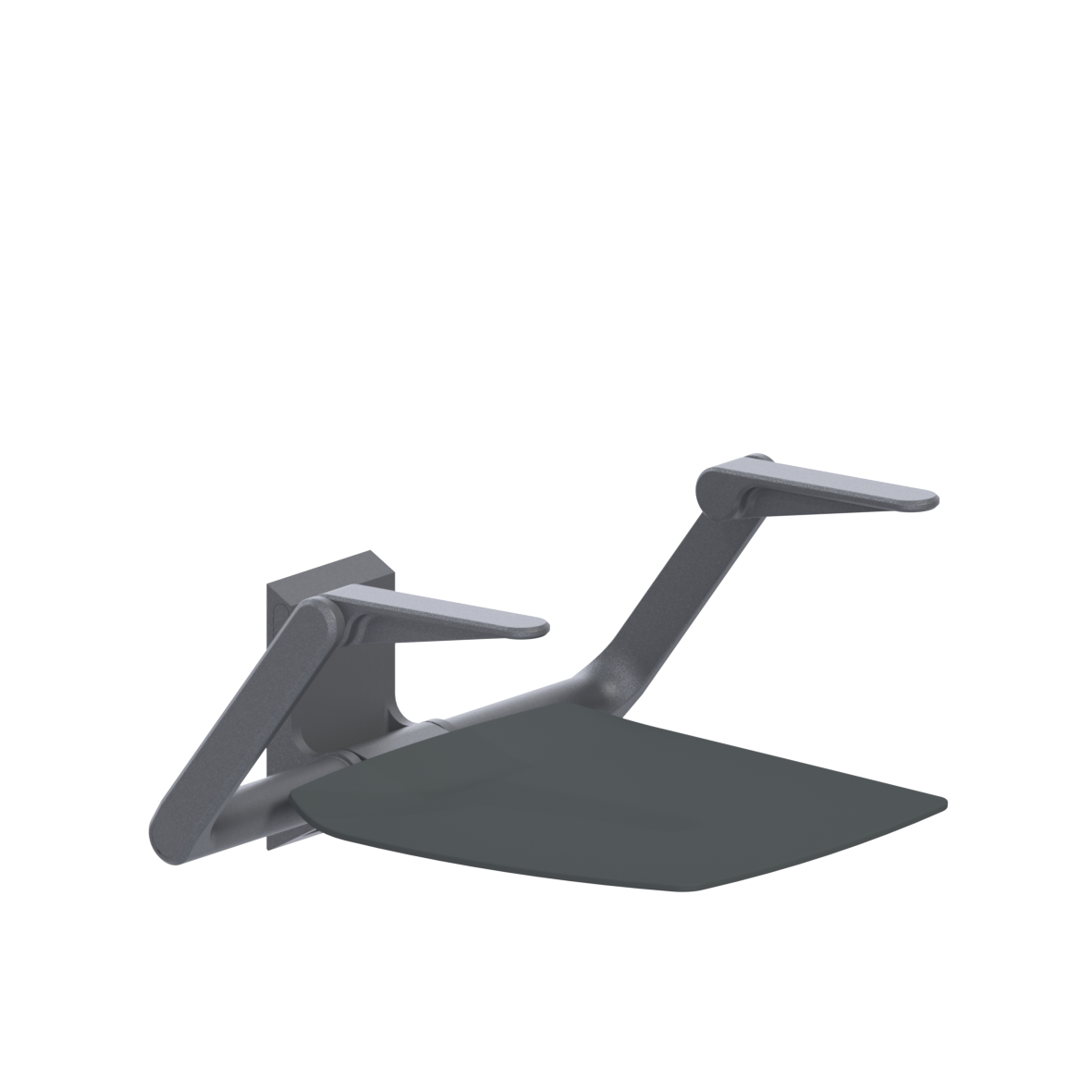

Product image
Situational image
Partial situational image

Overall download

ZIP file
  • Ascento as Modular Seating Solution, expandible and combinable
  • ergonomic formed seat with rounded outer edges
  • armrest can be folded up/down separately from each other
  • with adjustable brake
  • locked in place in vertical position
  • sealing of the drilling points (DIN 18534-1) in conjunction with NORMBAU fixing sets 7470xxx
  • Fixing set has to be determined according to conditions on site, is to be ordered separately
  • Product category : Lift-up shower seat
  • Product version : with armrest
  • Product group : 8700
  • Length : 584 mm
  • Width : 512 mm
  • Height : 297 mm
  • Wide seat surface : 412 mm
  • Depth of the seat surface : 422 mm
  • Material : Polypropylene
  • Material addition : support bracket and wall plate made of aluminium, base plate made of stainless steel, material No. 1.4301 (A2 AISI 304)
  • Surface : matt
  • Colour : Ascento Dark grey
  • Colours available : available in Ascento colours
  • Loading : max. 150 kg

Tender specification

ausschreiben.de

Manufacturer

Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
