Ascento Lift-up shower seat vario,

with Backrest, 412 x 512 x 505 mm, Ascento Dark grey

€583.00*

*Prices excl. VAT

Colour
Article number: 8750011151
  • Ascento as Modular Seating Solution, expandible and combinable
  • ergonomic formed seat with rounded outer edges
  • ergonomic formed backrest with rounded outer edges
  • with adjustable brake
  • locked in place in vertical position
  • Fixing set has to be determined according to conditions on site, is to be ordered separately
  • Product category : Lift-up shower seat
  • Product version : with Backrest
  • Product group : 8700
  • Length : 412 mm
  • Width : 512 mm
  • Height : 505 mm
  • Wide seat surface : 412 mm
  • Depth of the seat surface : 422 mm
  • Material : Polypropylene
  • Material addition : support bracket and wall plate made of aluminium, base plate made of stainless steel, material No. 1.4301 (A2 AISI 304)
  • Surface : matt
  • Colour : Ascento Dark grey
  • Colours available : available in Ascento colours
  • Loading : max. 150 kg

Downloads

Technical Specifications

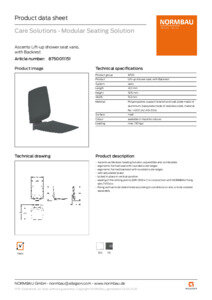

Product data sheet
Fixing instruction and directions for use

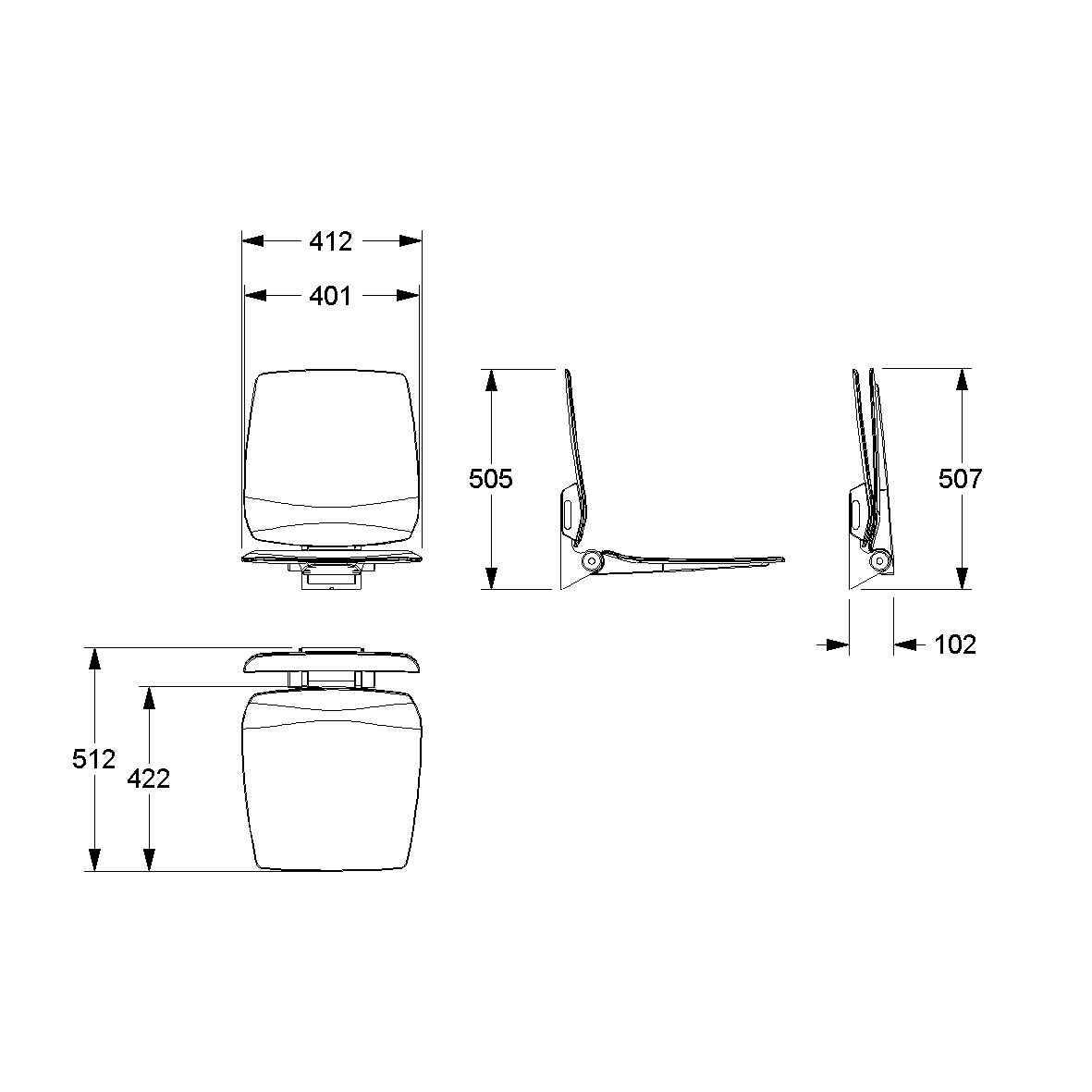

Technical Drawing

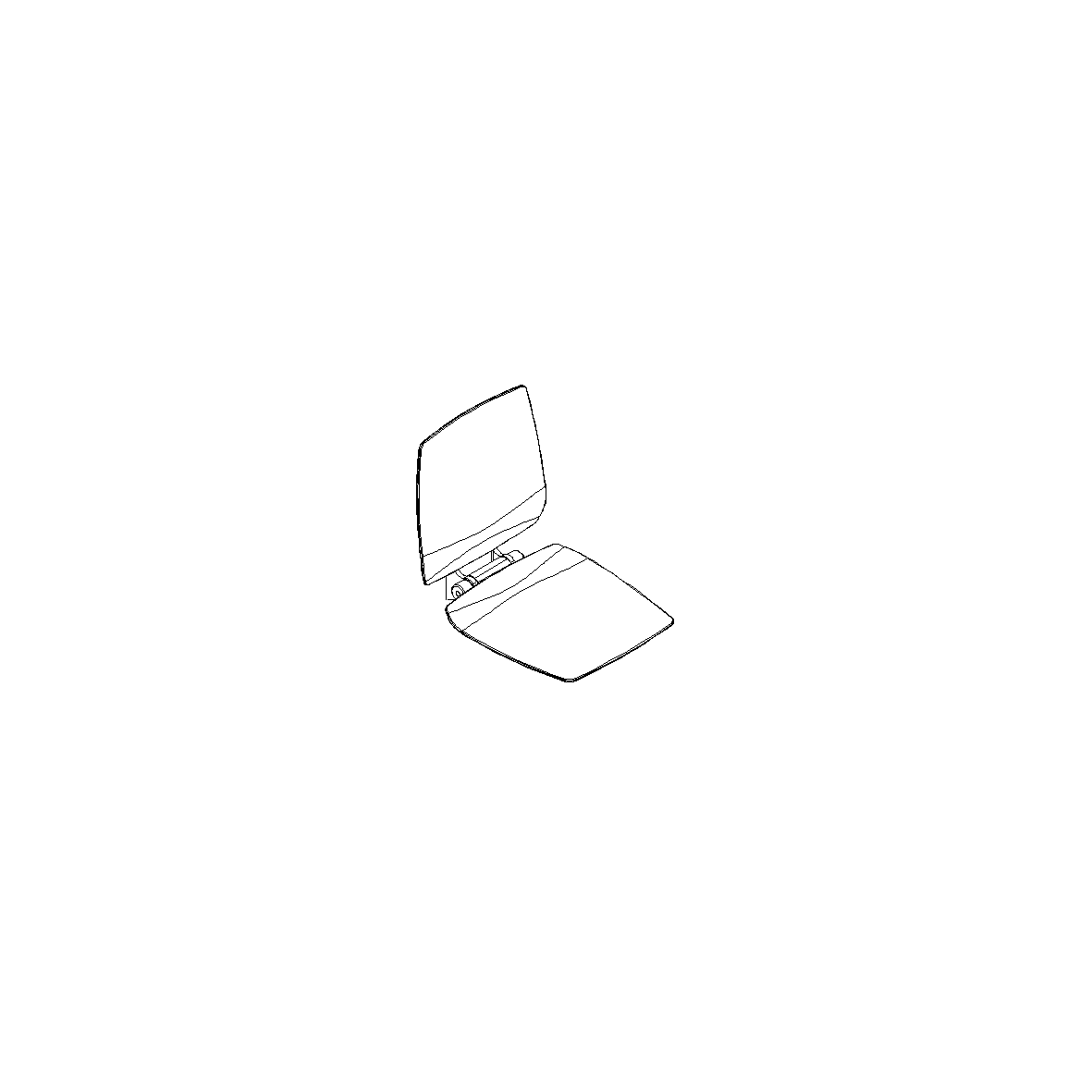

Isometric drawing

Images

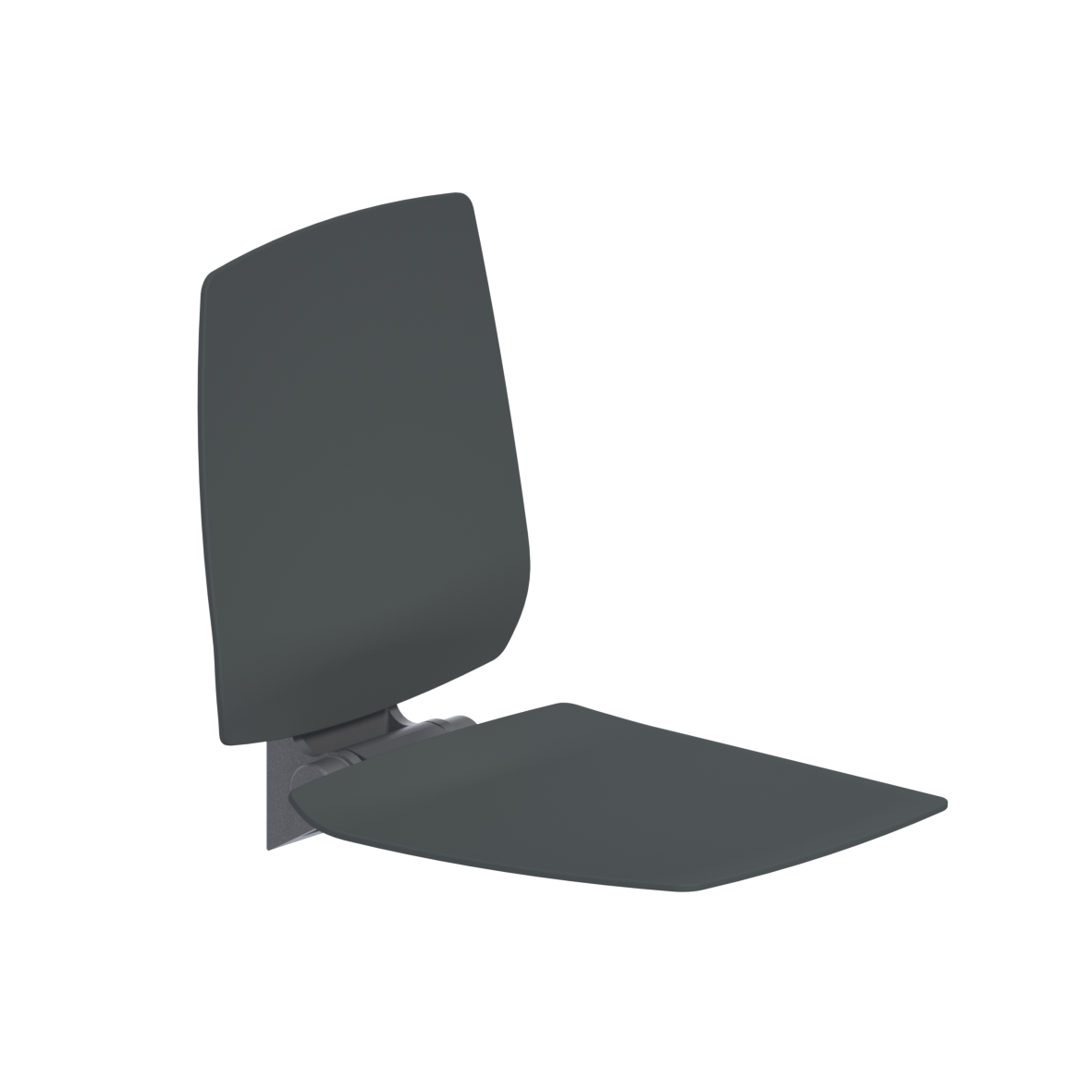

Product image
Situational image
Partial situational image

Overall download

ZIP file
