Verso Care Shower handrail,

with movable shower handrail, 1000 x 1100 mm, Dark grey

Downloads

Technical Specifications

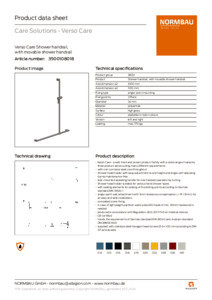

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing

Images

Product image
Situational image
Partial situational image

Overall download

ZIP file
  • Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
  • with non-corrosive steel core throughout
  • Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
  • side-mounted operating handle for one-handed operation by turning
  • Shower head holder suitable for various hand shower types
  • with sealing elements for sealing of the drilling points according to German standard DIN 18534-1
  • single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
  • concealed screw fixing
  • In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
  • produced in accordance with Regulation (EU) 2017/745 on medical devices
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
  • Product category : Shower handrail
  • Product version : with movable shower handrail
  • Product group : 3800
  • Axle dimension a2 : 1000 mm
  • Axle dimension a3 : 1100 mm
  • Diameter : 34 mm
  • Fixing points : 3 St.
  • Fixing type : single-point mounting
  • Material : polyamide
  • Surface : high gloss
  • Version : left and right
  • Colour : Dark grey
  • Colours available : available in nylon colours
  • Loading : max. 175 kg

Tender specification

ausschreiben.de

Manufacturer

Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
