Verso Care Shower handrail,

left, 500 x 750 mm, White

€229.00*

*Prices excl. VAT

Article number: 3500302019

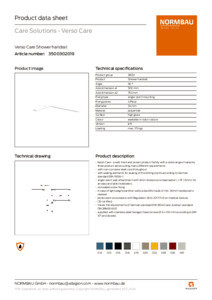

Product data sheet

Fixing instruction and directions for use

Technical Drawing

Isometric drawing

Product image

Situational image

Partial situational image

ZIP file

Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
with non-corrosive steel core throughout
with sealing elements for sealing of the drilling points according to German standard DIN 18534-1
single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
concealed screw fixing
In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
produced in accordance with Regulation (EU) 2017/745 on medical devices
CE-certified
meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
