Verso Care Shower curtain rail,
with curtain rings, U-shaped, 1000 x 1000 mm, Dark grey
€341.00*
*Prices excl. VAT
Article number: 3501833018
Downloads
Technical Specifications

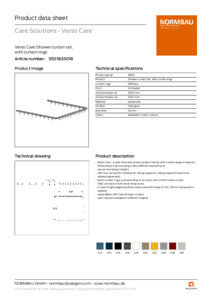

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- can be shortened (length)
- with two connection threads for ceiling supports, ceiling supports have to be ordered separately
- Nylon curtain rings corresponding to to colour tone of the hower curtain
- Wall connection with axial fixing screw
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- expandable with Care shower curtains
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- upon request available in different lenghts
- Product category : Shower curtain rail
- Product version : with curtain rings
- Product group : 3800
- Axle dimension a1 : 1000 mm
- Axle dimension a2 : 1000 mm
- Diameter : 34 mm
- Form : U-shaped
- Curtain rings : 28 St.
- Material : polyamide
- Surface : high gloss
- Colour : Dark grey
- Colours available : available in nylon colours
