Verso Care Shower curtain rail, with curtain rings, L-shaped, 1000 x 1000 mm, Dark grey


*Prices excl. VAT

Article number: 3501813018
  • Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
  • can be shortened (length)
  • with connection thread for ceiling support, ceiling support has to be ordered separately.
  • Nylon curtain rings corresponding to to colour tone of the hower curtain
  • Wall connection with axial fixing screw
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • expandable with Care shower curtains
  • supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
  • upon request available in different lenghts
  • Product category : Shower curtain rail
  • Product version : with curtain rings
  • Product group : 3800
  • Axle dimension a1 : 1000 mm
  • Axle dimension a2 : 1000 mm
  • Diameter : 34 mm
  • Form : L-shaped
  • Curtain rings : 17 St.
  • Material : polyamide
  • Surface : high gloss
  • Colour : Dark grey
  • Colours available : available in nylon colours


Technical Specifications

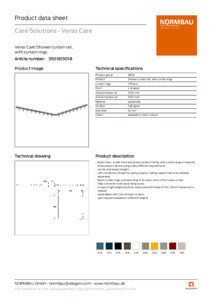

Product data sheet
