Verso Care Lift-up shower seat,
with floor support, 444 x 412 x 500 mm, Dark grey
€318.00*
*Prices excl. VAT
Article number: 3500015018
Downloads
Technical Specifications

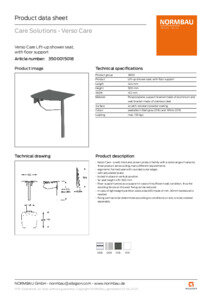

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- ergonomic formed seat with rounded outer edges
- with adjustable brake
- locked in place in vertical position
- for seat height 470-500 mm
- Floor support serves as a support in case of insufficient wall condition, thus the resulting forces on the wall fixing can be reduced
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up shower seat
- Product version : with floor support
- Product group : 3800
- Length : 444 mm
- Width : 412 mm
- Height : 500 mm
- Wide seat surface : 412 mm
- Depth of the seat surface : 419 mm
- Material : Polypropylene
- Material addition : support bracket made of aluminium and wall bracket made of stainless steel
- Surface : scratch-resistant powder coating
- Colour : Dark grey
- Colours available : available in Dark grey (018) and White (019)
- Loading : max. 150 kg
