Verso Care Lift-up shower seat,
444 x 412 x 128 mm, Dark grey
€292.00*
*Prices excl. VAT
Article number: 3500010018
Downloads
Technical Specifications

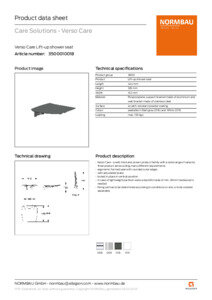

Product data sheet

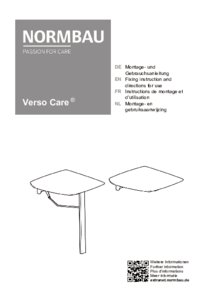

Fixing instruction and directions for use

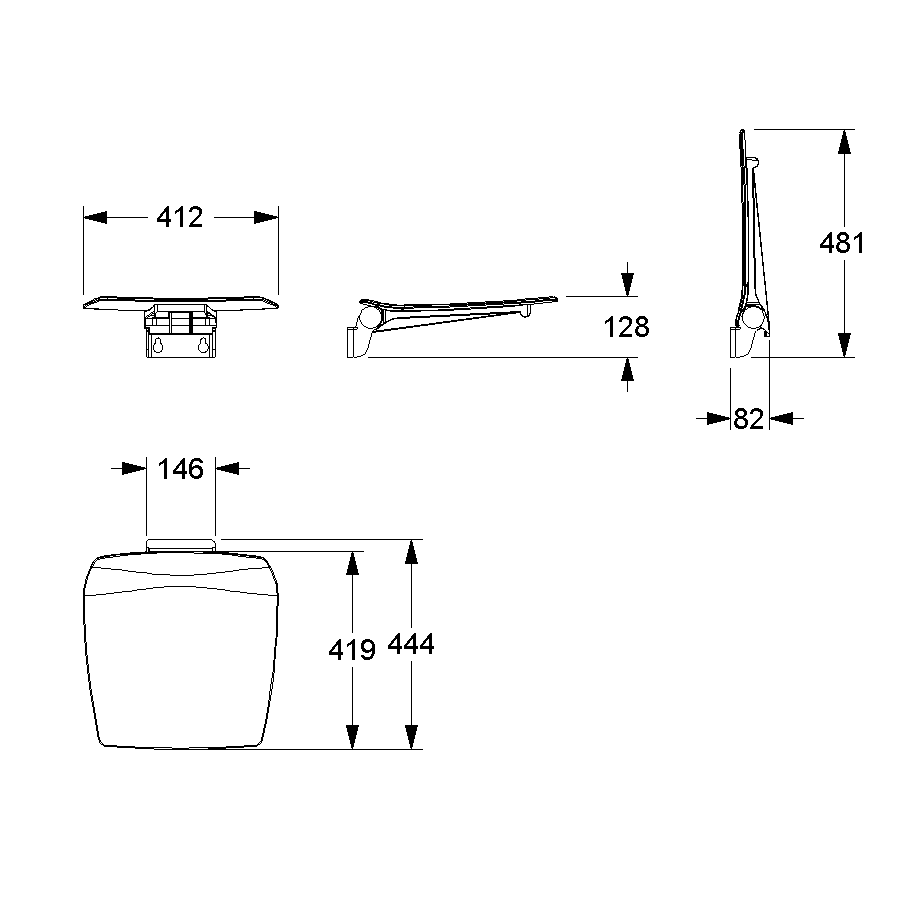

Technical Drawing

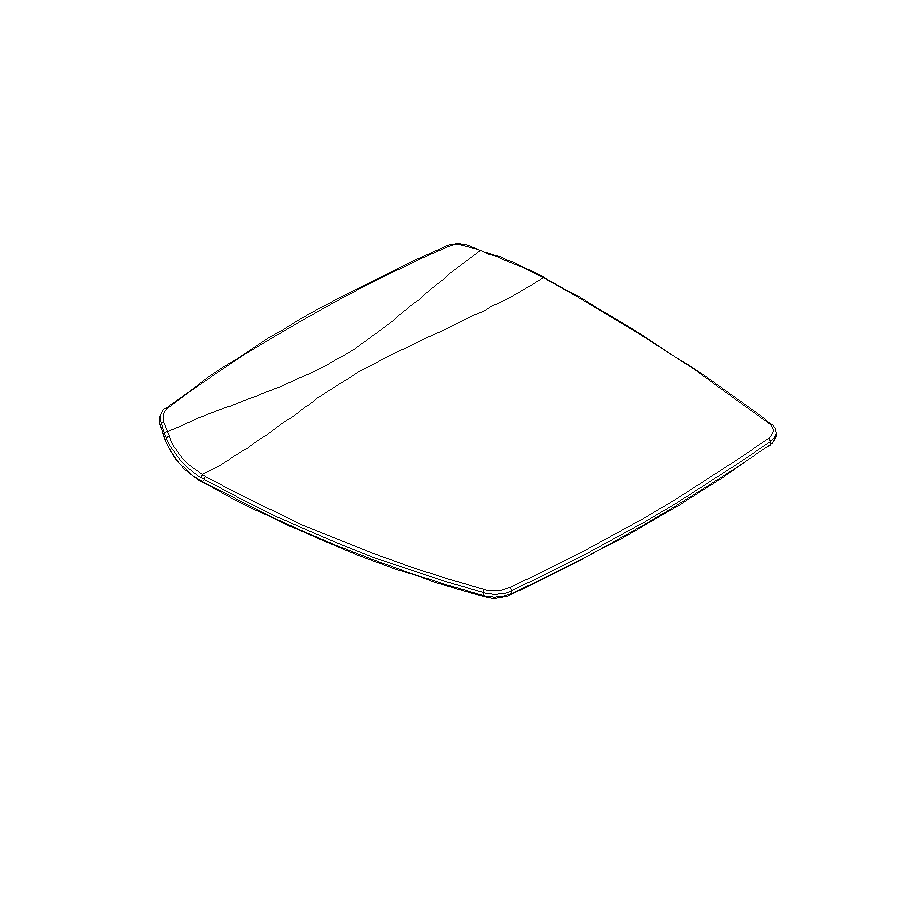

Isometric drawing
Images

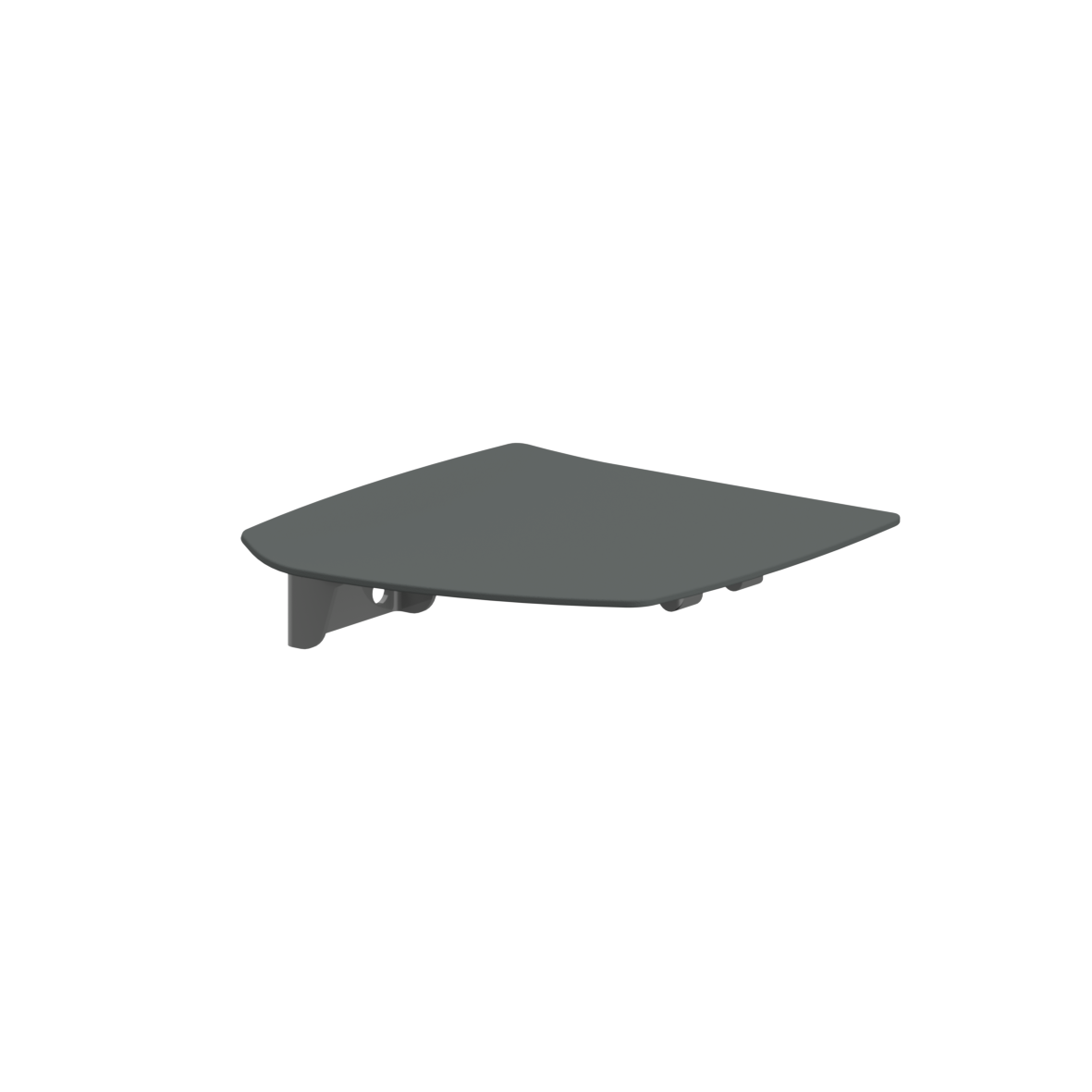

Product image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- ergonomic formed seat with rounded outer edges
- with adjustable brake
- locked in place in vertical position
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up shower seat
- Product group : 3800
- Length : 444 mm
- Width : 412 mm
- Height : 128 mm
- Wide seat surface : 412 mm
- Depth of the seat surface : 419 mm
- Material : Polypropylene
- Material addition : support bracket made of aluminium and wall bracket made of stainless steel
- Surface : scratch-resistant powder coating
- Colour : Dark grey
- Colours available : available in Dark grey (018) and White (019)
- Loading : max. 150 kg
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
Manufacturer
Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
normbau@allegion.com
Skip product gallery
MS
Care Fixing set MS 4.8 H 2,
for fixing on brickwork made of perforated brick (without injectionscartridge), Colourless
€44.25*
Care Fixing set MS 4.8 H 12,
for fixing on brickwork made of perforated brick (with injectionscartridge), Colourless
€85.50*
Care Fixing set MS 4.8 C 2,
for fixing in front of the wall with panels and lightweight partition walls (with backfill), Colourless
€13.00*
