Verso Care Grab rail,
with shower head holder, 90°, left, 400 x 1100 mm, Dark grey
€355.00*
*Prices excl. VAT
Article number: 3500252018
Downloads
Technical Specifications

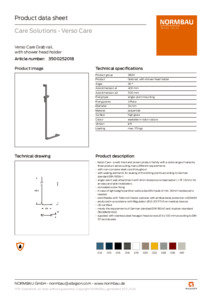

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- with non-corrosive steel core throughout
- with sealing elements for sealing of the drilling points according to German standard DIN 18534-1
- single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- retrofittable with Toilet roll holder, optional with antibacterial protection 4300665
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
- Product category : Grab rail
- Product version : with shower head holder
- Product group : 3800
- Axle dimension a1 : 400 mm
- Axle dimension a3 : 1100 mm
- Diameter : 34 mm
- Fixing points : 3 St.
- Angle : 90 °
- Fixing type : single-point mounting
- Material : polyamide
- Surface : high gloss
- Version : left
- Colour : Dark grey
- Colours available : available in nylon colours
- Loading : max. 175 kg
