Verso Care Duo Shower head rail,
900 mm, Red-White
€185.00*
*Prices excl. VAT
Article number: 3501213912
- Verso Care Duo facilitates orientation thanks to the high-contrast color combination
- Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
- concealed screw fixing
- single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- CE-certified
- supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
- Product category : Shower head rail
- Product group : 3800
- Axle dimension a1 : 900 mm
- Diameter : 34 mm
- Fixing points : 2 St.
- Fixing type : single-point mounting
- Material : polyamide
- Surface : high gloss
- Version : left and right
- Colour : Red-White
- Loading : max. 125 kg
Downloads
Technical Specifications

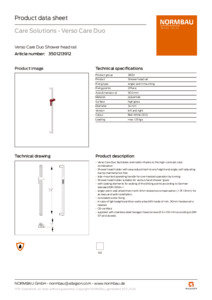

Product data sheet
