Verso Care Duo Shower handrail,
with movable shower handrail, left, 750 x 750 x 1100 mm, Red-White
€443.00*
*Prices excl. VAT
Article number: 3500352912
Downloads
Technical Specifications

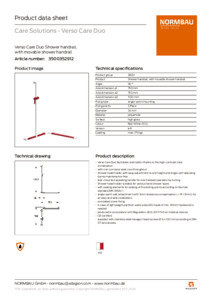

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Overall download
ZIP file
- Verso Care Duo facilitates orientation thanks to the high-contrast color combination
- with non-corrosive steel core throughout
- Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
- side-mounted operating handle for one-handed operation by turning
- Shower head holder suitable for various hand shower types
- with sealing elements for sealing of the drilling points according to German standard DIN 18534-1
- single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
- Product category : Shower handrail
- Product version : with movable shower handrail
- Product group : 3800
- Axle dimension a1 : 750 mm
- Axle dimension a2 : 750 mm
- Axle dimension a3 : 1100 mm
- Diameter : 34 mm
- Fixing points : 5 St.
- Fixing type : single-point mounting
- Material : polyamide
- Surface : high gloss
- Version : left
- Colour : Red-White
- Loading : max. 175 kg
