Verso Care Duo Hanging seat,

380 x 515 x 450 mm, Red-White

Downloads

Technical Specifications

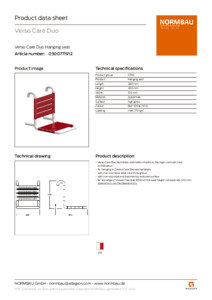

Product data sheet
Fixing instruction and directions for use
Technical Drawing

Images

Product image
Situational image

Overall download

ZIP file
  • Verso Care Duo facilitates orientation thanks to the high-contrast color combination
  • for hanging in Cavere Care Shower handrails
  • with non-corrosive steel core throughout
  • with non-slip seat and backrest by textured surface
  • for top edge of shower handrail 850mm the seat height corresponds 470 mm (DIN18040 und ÖNORM B1600)
  • Product category : Hanging seat
  • Product group : 0700
  • Length : 380 mm
  • Width : 515 mm
  • Height : 450 mm
  • Wide seat surface : 380 mm
  • Depth of the seat surface : 320 mm
  • Material : polyamide
  • Surface : high gloss
  • Colour : Red-White
  • Loading : max. 175 kg
