Verso Care Duo Grab rail,
with shower head holder, 90°, left, 400 x 1100 mm, Red-White
€345.00*
*Prices excl. VAT
Article number: 3500252912
- Verso Care Duo facilitates orientation thanks to the high-contrast color combination
- with non-corrosive steel core throughout
- Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
- Shower head holder suitable for various hand shower types
- concealed screw fixing
- single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
- Product category : Grab rail
- Product version : with shower head holder
- Product group : 3800
- Axle dimension a1 : 400 mm
- Axle dimension a3 : 1100 mm
- Diameter : 34 mm
- Fixing points : 3 St.
- Angle : 90 °
- Fixing type : single-point mounting
- Material : polyamide
- Surface : high gloss
- Version : left
- Colour : Red-White
- Loading : max. 175 kg
Downloads
Technical Specifications

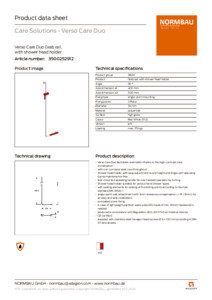

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Overall download
ZIP file
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
