Verso Care Duo Grab rail,

90°, right, 400 x 750 mm, Red-White

€217.00*

*Prices excl. VAT

Article number: 3500154912
  • Verso Care Duo facilitates orientation thanks to the high-contrast color combination
  • with non-corrosive steel core throughout
  • with sealing elements for sealing of the drilling points according to German standard DIN 18534-1
  • single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
  • concealed screw fixing
  • In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
  • retrofittable with Toilet roll holder, optional with antibacterial protection 4300665
  • produced in accordance with Regulation (EU) 2017/745 on medical devices
  • CE-certified
  • supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
  • Product category : Grab rail
  • Product group : 3800
  • Axle dimension a1 : 400 mm
  • Axle dimension a3 : 750 mm
  • Diameter : 34 mm
  • Fixing points : 3 St.
  • Angle : 90 °
  • Fixing type : single-point mounting
  • Material : polyamide
  • Surface : high gloss
  • Version : right
  • Colour : Red-White
  • Loading : max. 175 kg

Downloads

Technical Specifications

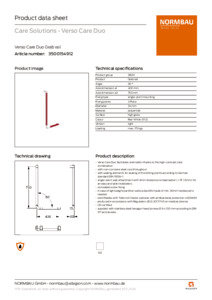

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
