Verso Care Duo Grab bar,
with 3 fixing points, 1000 mm, Red-White
€159.00*
*Prices excl. VAT
Article number: 3500105912
- Verso Care Duo facilitates orientation thanks to the high-contrast color combination
- with non-corrosive steel core throughout
- single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- CE-certified
- supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
- Product category : Grab bar
- Product version : with 3 fixing points
- Product group : 3800
- Axle dimension a1 : 1000 mm
- Diameter : 34 mm
- Fixing points : 3 St.
- Angle : 0 °
- Fixing type : single-point mounting
- Material : polyamide
- Surface : high gloss
- Version : left and right
- Colour : Red-White
- Loading : max. 175 kg
![](https://extranet.normbau.de/media/f4/99/3c/1704403542/3500105_CAD2D_0101.png)
Downloads
Technical Specifications

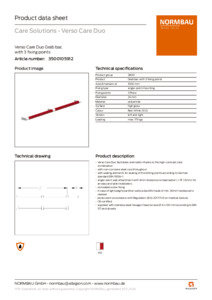

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Overall download
ZIP file
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
