Special Care PSY Hook,
28 x 46 x 58 mm, Dark grey
€17.25*
*Prices excl. VAT
Article number: 0583160018
Downloads
Technical Specifications

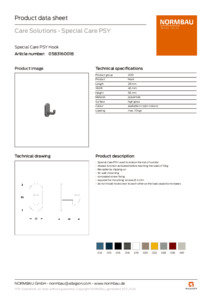

Product data sheet

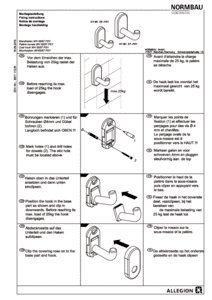

Fixing instruction and directions for use

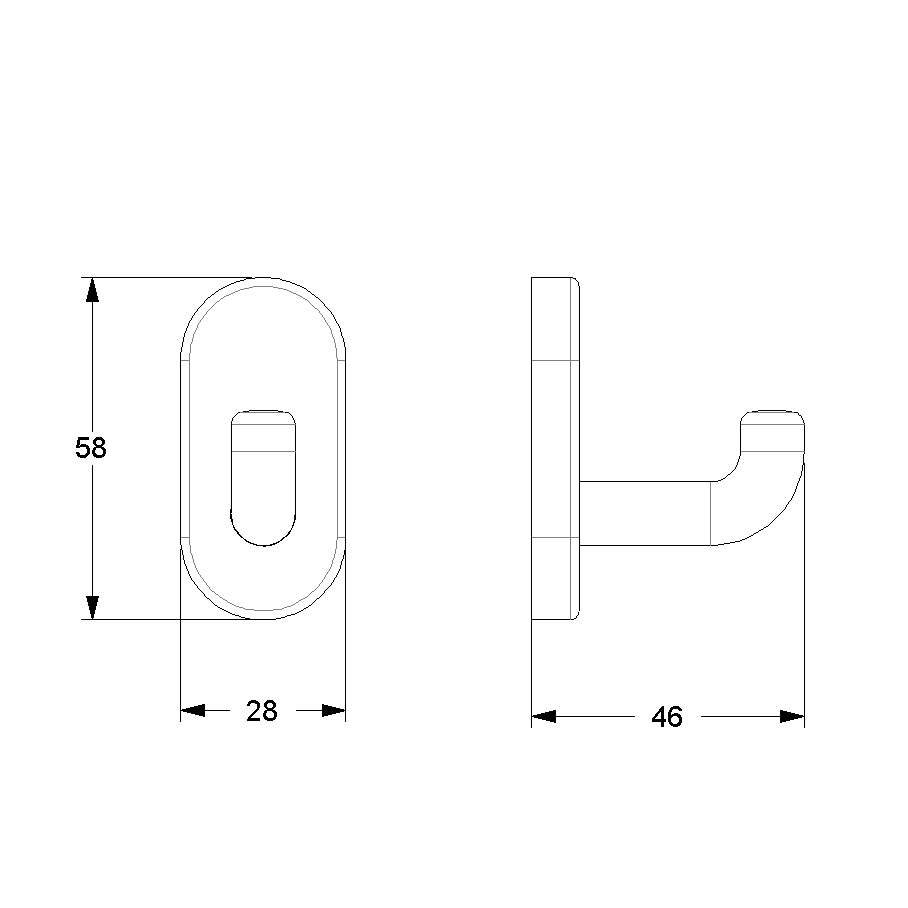

Technical Drawing

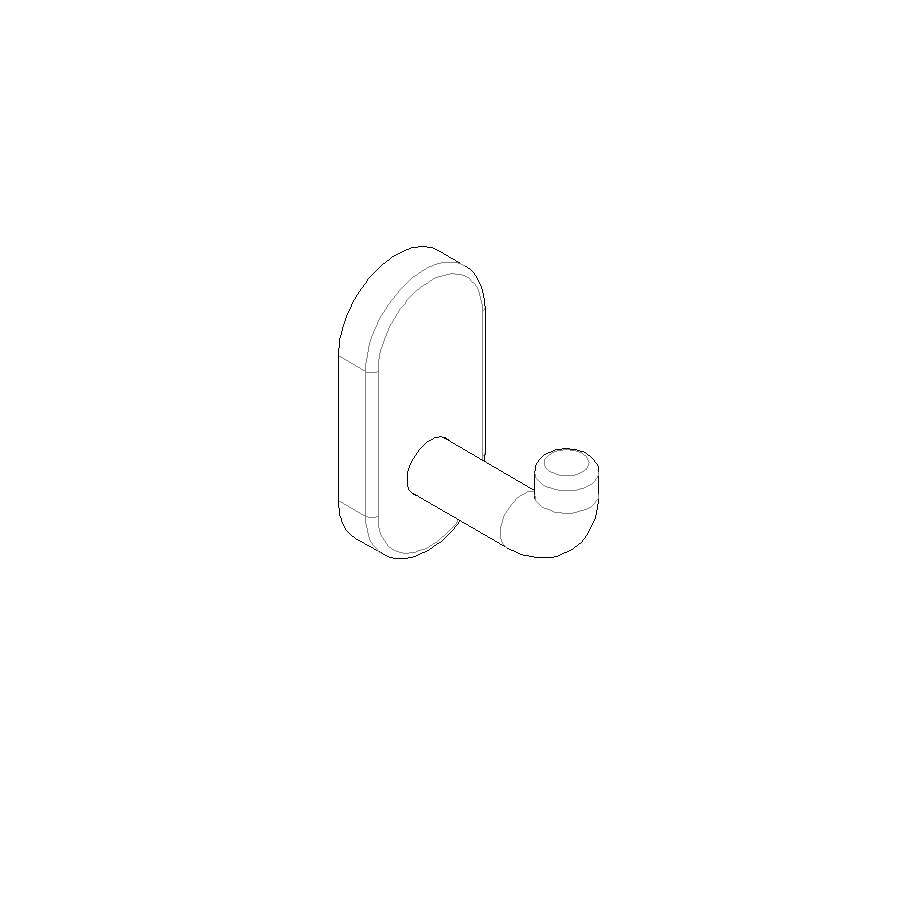

Isometric drawing
Images

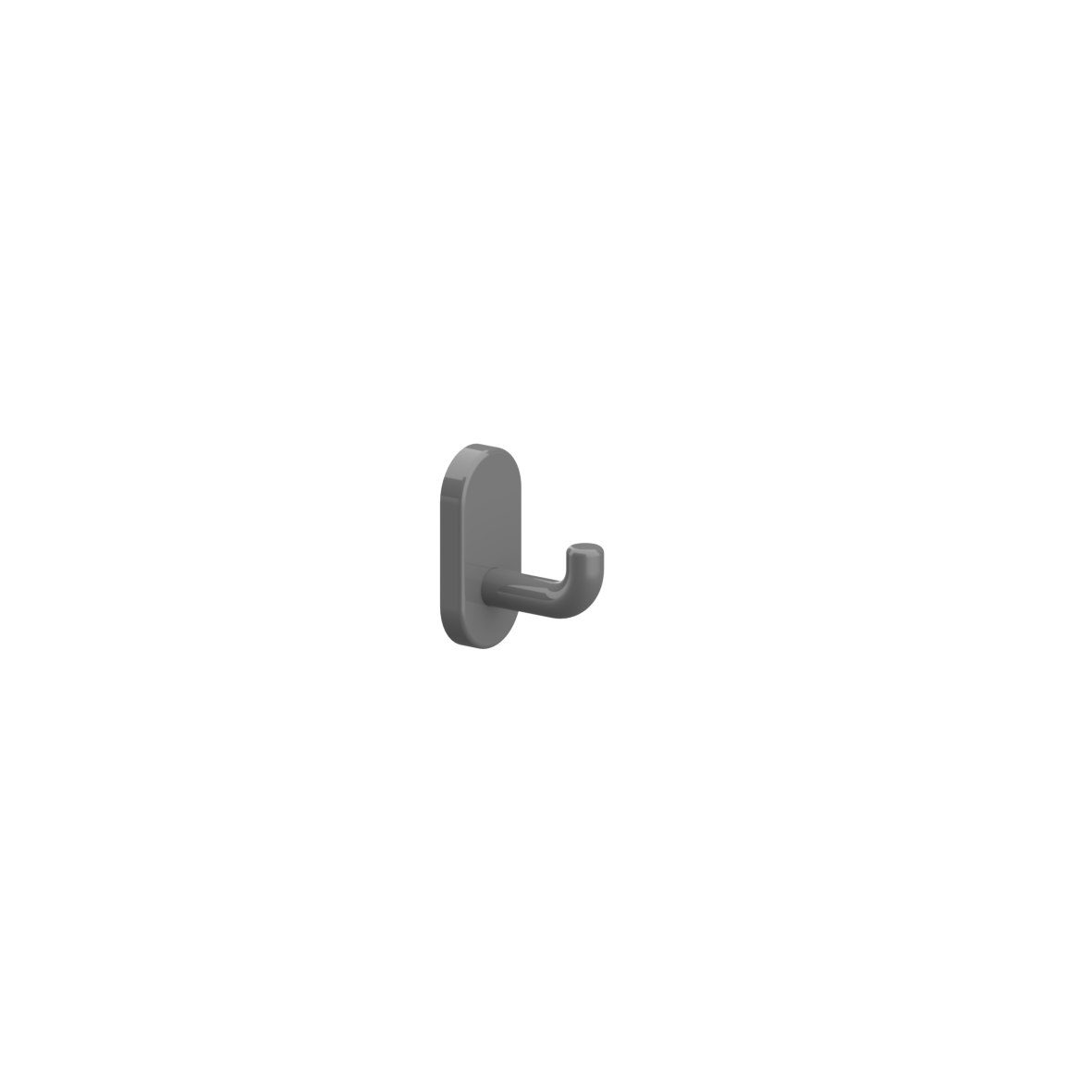

Product image
Situational image
Overall download
ZIP file
- Special Care PSY used to reduce the risk of suicide
- release function activated before reaching the load of 10kg
- Reusable by clipping on
- for wall mounting
- concealed screw fixing
- required for mounting: screws Ø 4 mm
- do not install hooks next to each other as the load capacity increases
- Product category : Hook
- Product group : 2010
- Length : 28 mm
- Width : 46 mm
- Height : 58 mm
- Material : polyamide
- Surface : high gloss
- Colour : Dark grey
- Colours available : available in nylon colours
- Loading : max. 10 kg
