Special Care Adipositas Shower head rail,
600 mm, Dark grey
€184.00*
*Prices excl. VAT
Article number: 0457310018
Downloads
Technical Specifications

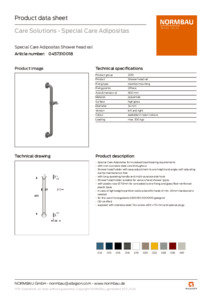

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Special Care Adipositas for increased load-bearing requirements
- with non-corrosive steel core throughout
- Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
- with long operating handle and multi-purpose side hook
- Shower head holder suitable for various hand shower types
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- for the use of rose gaskets 0300901/0300910 geeignet
- CE-certified
- supplied with stainless steel Torx screw sØ 6 x 70 mm and special plugs
- Product category : Shower head rail
- Product group : 2010
- Axle dimension a1 : 600 mm
- Diameter : 34 mm
- Fixing points : 2 St.
- Fixing type : rosettes mounting
- Material : polyamide
- Surface : high gloss
- Version : left and right
- Colour : Dark grey
- Colours available : available in nylon colours
- Loading : max. 300 kg
