Special Care Adipositas Grab rail, 90°, 500 x 750 mm, Dark grey

€288.00*

*Prices excl. VAT

Colour
Article number: 0457250018
  • Special Care Adipositas for increased load-bearing requirements
  • with non-corrosive steel core throughout
  • with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • retrofittable with Toilet roll holder, optional with antibacterial protection 4300665
  • for the use of rose gaskets 0300901/0300910 geeignet
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • supplied with stainless steel Torx screw sØ 6 x 70 mm and special plugs
  • Product category : Grab rail
  • Product group : 2010
  • Axle dimension a1 : 500 mm
  • Axle dimension a3 : 750 mm
  • Diameter : 34 mm
  • Fixing points : 3 St.
  • Angle : 90 °
  • Fixing type : rosettes mounting
  • Material : polyamide
  • Surface : high gloss
  • Version : left and right
  • Colour : Dark grey
  • Colours available : available in nylon colours
  • Loading : max. 300 kg

Downloads

Technical Specifications

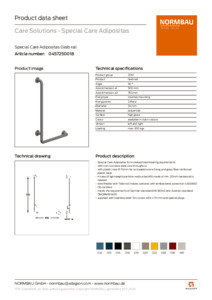

Product data sheet
