Special Care Adipositas Grab rail,

135°, 579 x 336 mm, Dark grey

Downloads

Technical Specifications

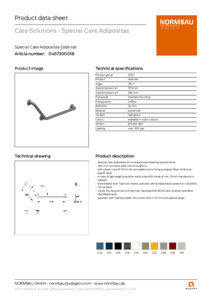

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing

Images

Product image
Situational image
Partial situational image

Overall download

ZIP file
  • Special Care Adipositas for increased load-bearing requirements
  • with non-corrosive steel core throughout
  • with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • retrofittable with Toilet roll holder, optional with antibacterial protection 4300665
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • supplied with stainless steel Torx screw sØ 6 x 70 mm and special plugs
  • Product category : Grab rail
  • Product group : 2010
  • Axle dimension a1 : 579 mm
  • Axle dimension a3 : 336 mm
  • Diameter : 34 mm
  • Fixing points : 3 St.
  • Angle : 135 °
  • Fixing type : rosettes mounting
  • Material : polyamide
  • Surface : high gloss
  • Version : left and right
  • Colour : Dark grey
  • Loading : max. 300 kg
