Special Care Adipositas Grab rail,
135°, 336 x 336 mm, Sapphire blue
€242.00*
*Prices excl. VAT
Article number: 0457301015
Downloads
Technical Specifications

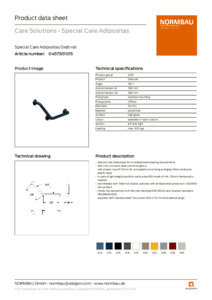

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
- Special Care Adipositas for increased load-bearing requirements
- with non-corrosive steel core throughout
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- retrofittable with Toilet roll holder, optional with antibacterial protection 4300665
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel Torx screw sØ 6 x 70 mm and special plugs
- Product category : Grab rail
- Product group : 2010
- Axle dimension a1 : 336 mm
- Axle dimension a3 : 336 mm
- Diameter : 34 mm
- Fixing points : 3 St.
- Angle : 135 °
- Fixing type : rosettes mounting
- Material : polyamide
- Surface : high gloss
- Version : left and right
- Colour : Sapphire blue
- Colours available : available in nylon colours
- Loading : max. 300 kg
