Shutter and finger protection profile SSP 2050,
2050 x 12 x 25 mm, Black
€15.00*
*Prices excl. VAT
Article number: 0289440016
Downloads
Technical Specifications

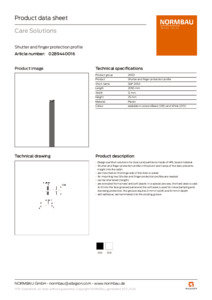

Product data sheet
Technical Drawing
Isometric drawing
Images
Product image
Product image 2
Overall download
ZIP file
- Design partition solutions for doors and partitions made of HPL board material
- Shutter and finger protection profile in the pivot-point area of the door prevents insight into the cabin
- are mounted on the hinge side of the door or panel
- for mounting two Shutter and finger protection profiles are needed
- can be shortened (length)
- are extruded from a hard and soft plastic in a special process, the hard area is used to fit into the face grooved panel and the soft area is used for noise damping and clamping protection, the groove requires 3 mm in width and 8 mm in depth
- self-adhesive, are hammered into the existing groove
- Product category : Shutter and finger protection profile
- Short name : SSP 2050
- Product group : 2600
- Length : 2050 mm
- Width : 12 mm
- Height : 25 mm
- Material : Plastic
- Colour : Black
- Colours available : available in colours Black (016) and White (019)
