Nylon Jointing piece NY.KL,
80 x 34 x 34 mm, Dark grey
€19.25*
*Prices excl. VAT
Article number: 0289330018
Downloads
Technical Specifications

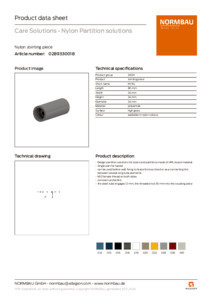

Product data sheet
Technical Drawing
Isometric drawing
Images
Product image
Overall download
ZIP file
- Design partition solutions for doors and partitions made of HPL board material
- Single part for toprail
- can be used before wall fixing to brace the top chord or as a connecting link between several long tube elements
- M12 female thread on both sides
- corrosion protected
- the steel tube engages 12 mm, the threaded rod 30 mm into the coupling piece
- Product category : Jointing piece
- Short name : NY.KL
- Product group : 2600
- Length : 80 mm
- Width : 34 mm
- Height : 34 mm
- Diameter : 34 mm
- Material : polyamide
- Surface : high gloss
- Colour : Dark grey
- Colours available : available in nylon colours
