Nylon Door hinge NY.TB 82.1,
with spring, for door closing, DIN left, 75 x 25 x 80 mm, Taupe
€28.00*
*Prices excl. VAT
Article number: 0529020020
- Design partition solutions for doors and partitions made of HPL board material
- with adjustable spring tension
- steel reinforced
- concealed screw fixing
- Mounting Recommendation: 2 door hinges for door weight up to 40 kg 3 door hinges for door weight up to 60 kg
- Supplied without fixing material
- Product category : Door hinge
- Product version : with spring
- Short name : NY.TB 82.1
- Product group : 2200
- Length : 75 mm
- Width : 25 mm
- Height : 80 mm
- Version : for door closing
- Material : polyamide
- Surface : high gloss
- Version : DIN left
- Colour : Taupe
- Colours available : available in nylon colours
Downloads
Technical Specifications

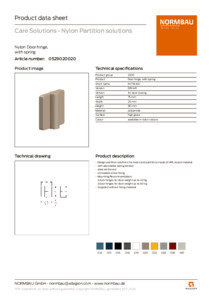

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Overall download
ZIP file
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
