Nylon Door hinge NY.TB 82.1,
with spring, for door closing, DIN left, 75 x 25 x 80 mm, Dark grey
€28.75*
*Prices excl. VAT
Article number: 0529020018
Downloads
Technical Specifications

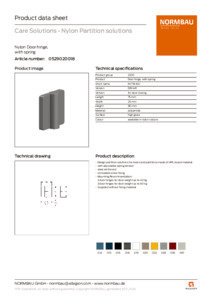

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Overall download
ZIP file
- Design partition solutions for doors and partitions made of HPL board material
- with adjustable spring tension
- steel reinforced
- concealed screw fixing
- Mounting Recommendation: 2 door hinges for door weight up to 40 kg 3 door hinges for door weight up to 60 kg
- Supplied without fixing material
- Product category : Door hinge
- Product version : with spring
- Short name : NY.TB 82.1
- Product group : 2200
- Length : 75 mm
- Width : 25 mm
- Height : 80 mm
- Version : for door closing
- Material : polyamide
- Surface : high gloss
- Version : DIN left
- Colour : Dark grey
- Colours available : available in nylon colours
