Nylon Door hinge NY.TB 78, DIN right, 75 x 25 x 80 mm, Black

€14.00*

*Prices excl. VAT

Colour
Article number: 0341010016
  • Design partition solutions for doors and partitions made of HPL board material
  • steel reinforced
  • concealed screw fixing Mounting Recommendation:2 door hinges for door weight up to 40 kg3 door hinges for door weight up to 60 kg
  • Supplied without fixing material
  • Product category : Door hinge
  • Short name : NY.TB 78
  • Product group : 2200
  • Length : 75 mm
  • Width : 25 mm
  • Height : 80 mm
  • Material : polyamide
  • Surface : high gloss
  • Version : DIN right
  • Colour : Black
  • Colours available : available in nylon colours

Downloads

Technical Specifications

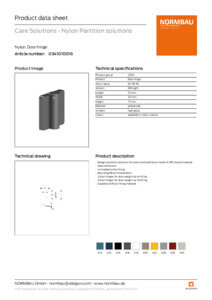

Product data sheet
Fixing instruction
Technical Drawing
Isometric drawing

Images

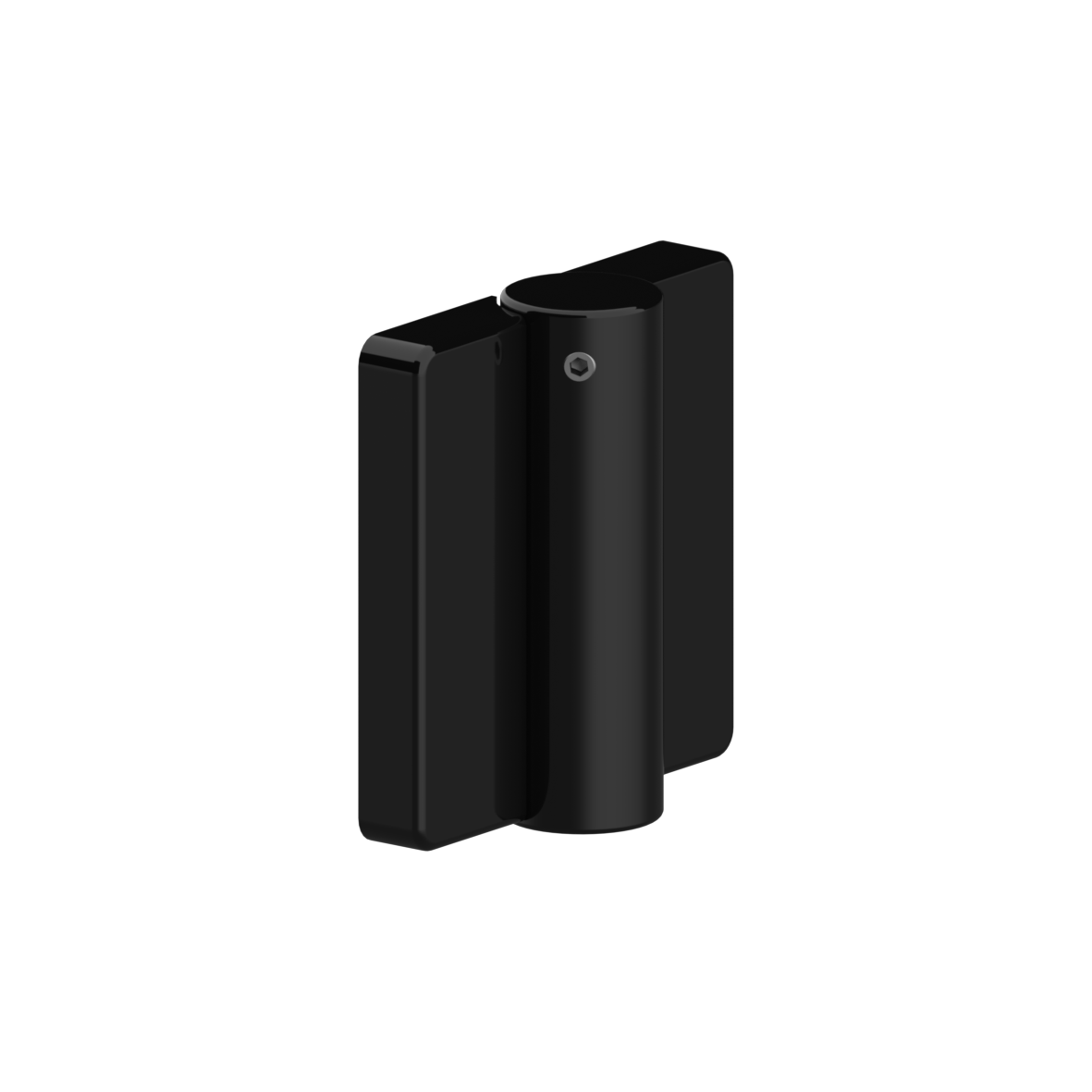

Product image
