Nylon Coupling piece NY.KL, 80 x 34 x 34 mm, Dark grey

€18.75*

*Prices excl. VAT

Colour
Article number: 0289330018
  • Design partition solutions for doors and partitions made of HPL board material
  • Single part for upper belt can be used before wall connection to brace the top chord or as a connecting link between several long tube elements M12 female thread on both sides corrosion protected the steel tube engages 12 mm, the threaded rod 30 mm into the coupling piece
  • Product category : Coupling piece
  • Short name : NY.KL
  • Product group : 2600
  • Length : 80 mm
  • Width : 34 mm
  • Height : 34 mm
  • Diameter : 34 mm
  • Material : polyamide
  • Surface : high gloss
  • Colour : Dark grey
  • Colours available : available in nylon colours

Downloads

Technical Specifications

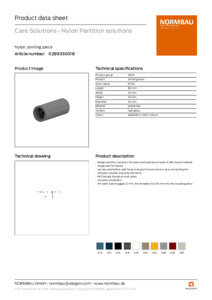

Product data sheet

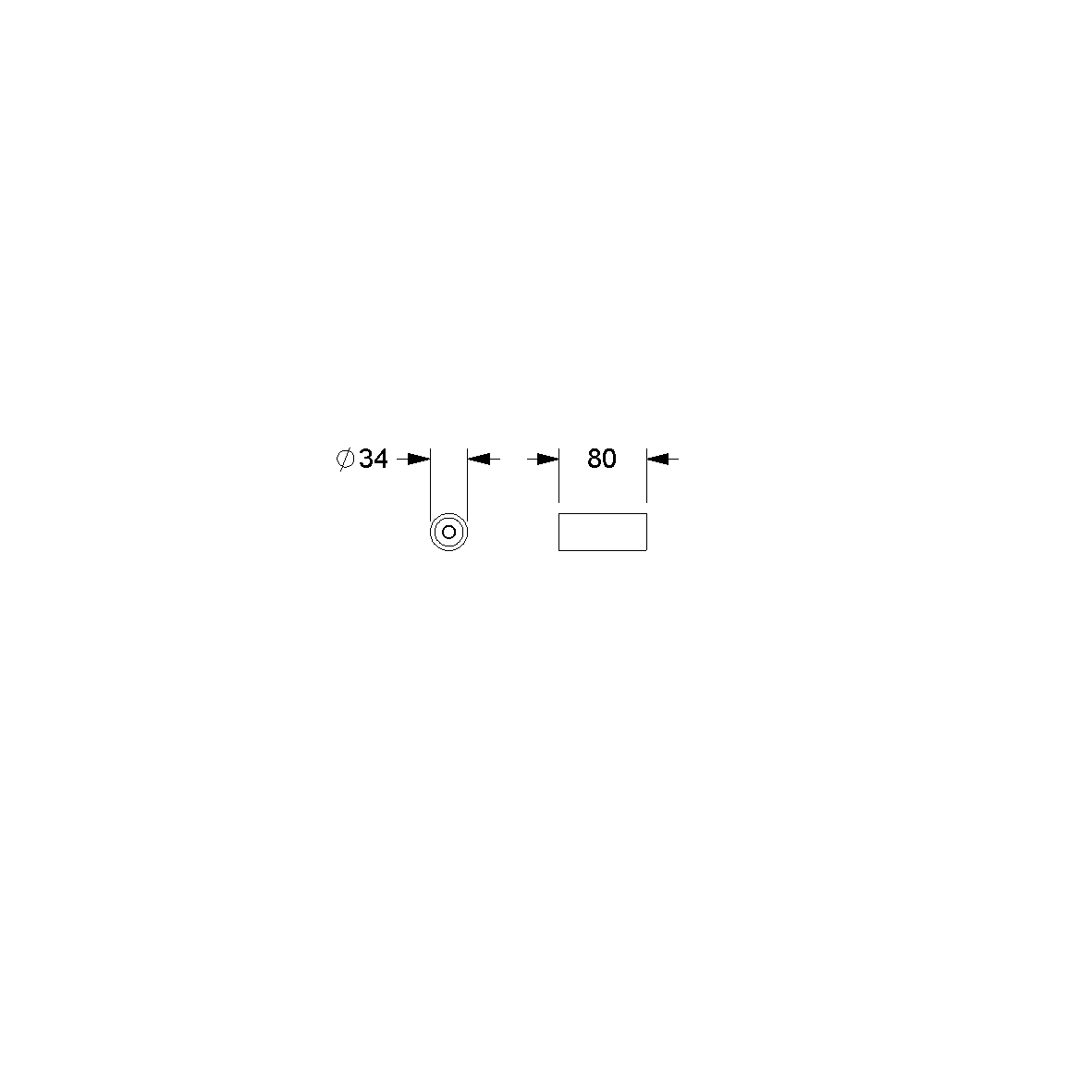

Technical Drawing

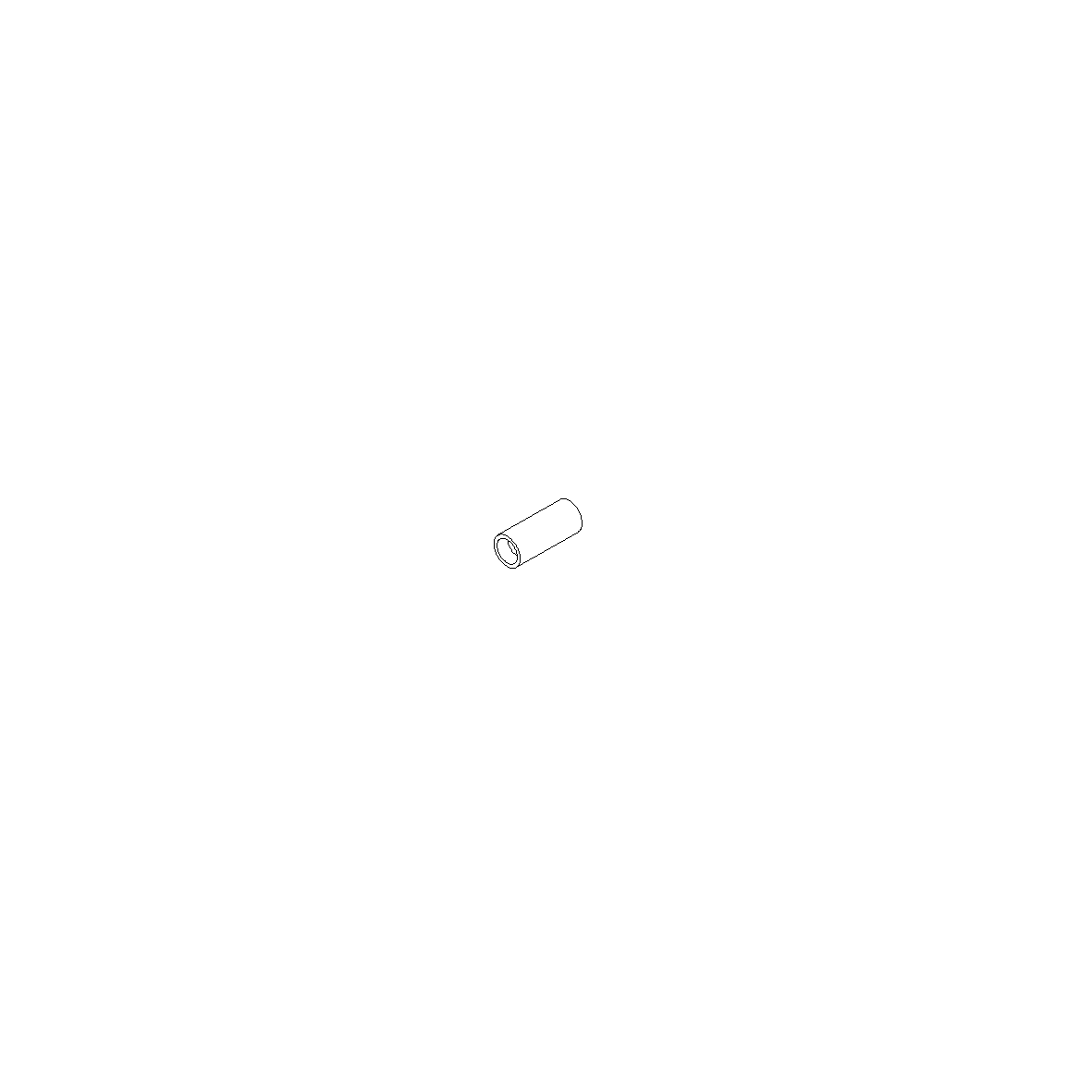

Isometric drawing

Images

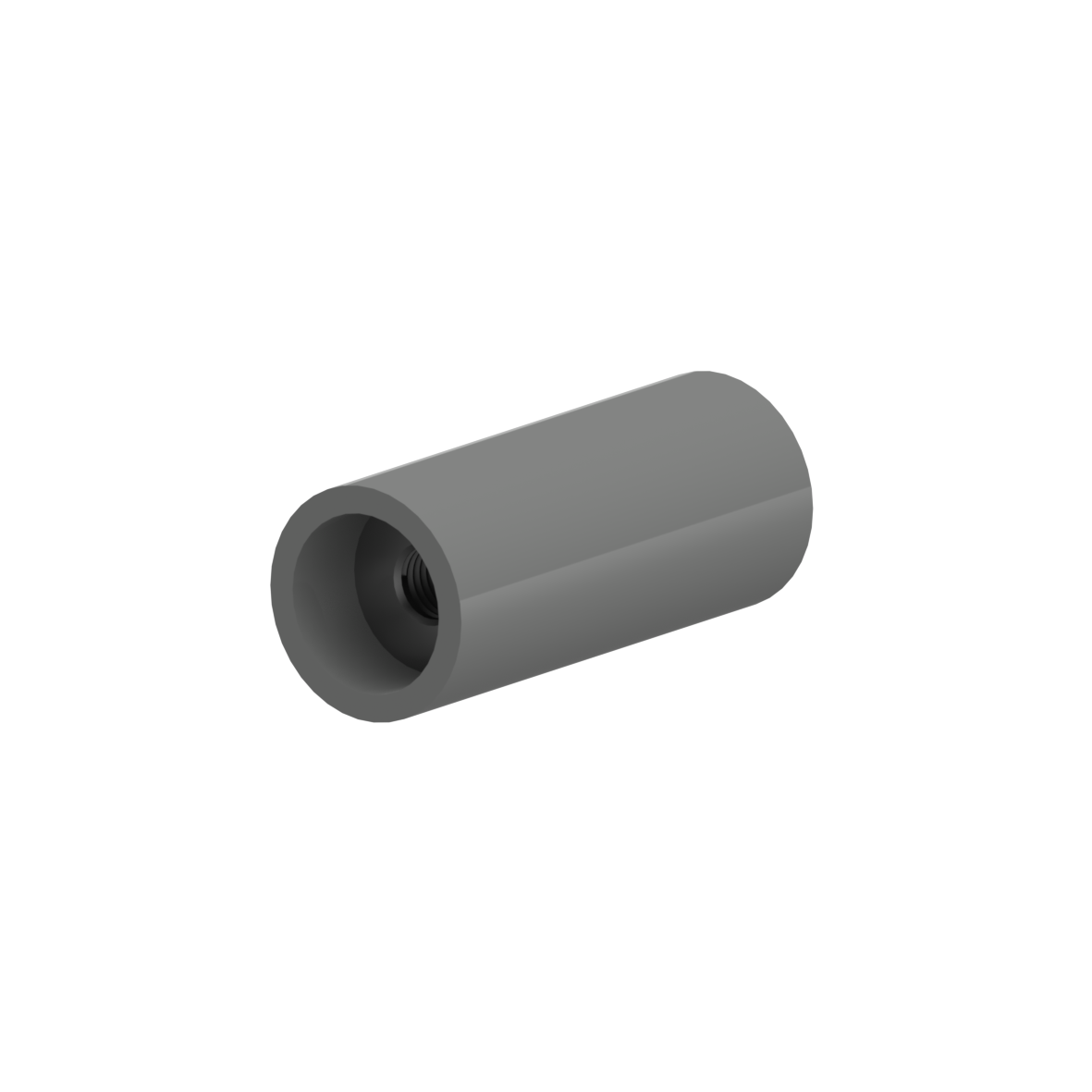

Product image

Overall download

ZIP file
