Nylon Care Bathroom ventilator,
458 x 91 x 38 mm, White
€10.75*
*Prices excl. VAT
Article number: 0089010019
Downloads
Technical Specifications

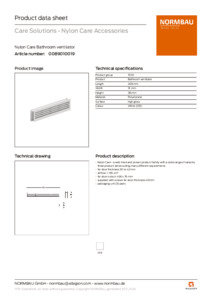

Product data sheet

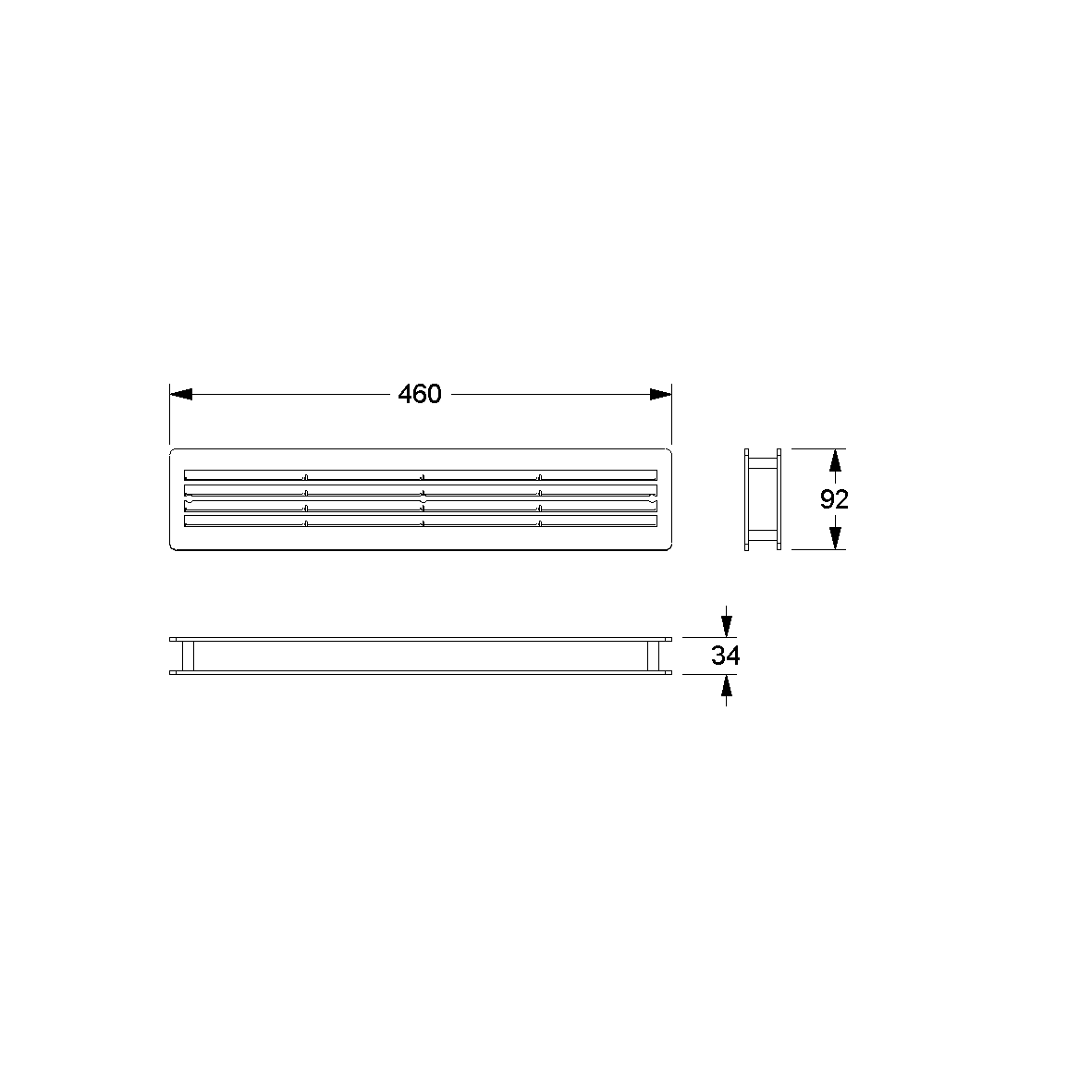

Technical Drawing

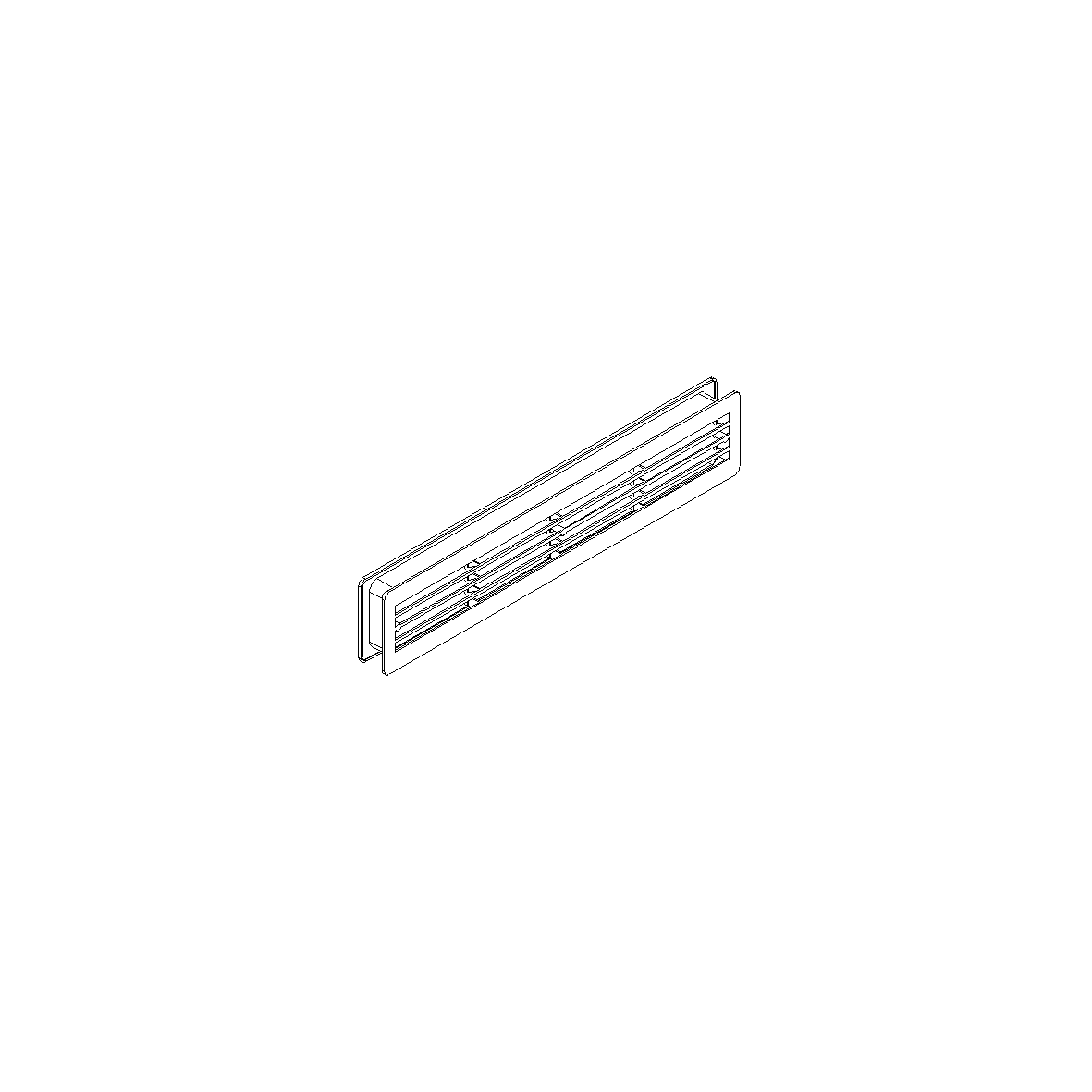

Isometric drawing
Images

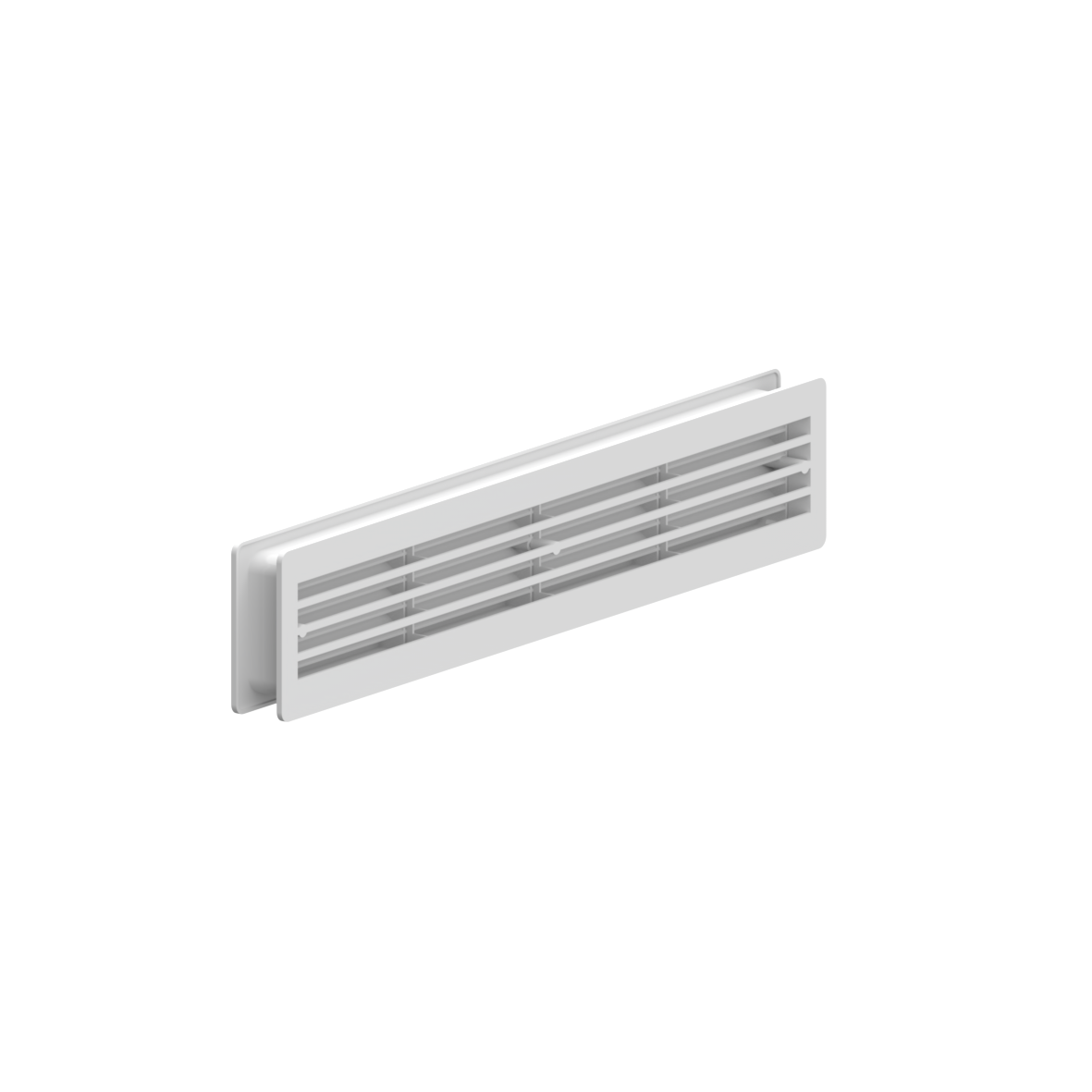

Product image
Situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- for door thickness 30 to 42 mm
- airflow = 165 cm²
- for door cutout: 436 x 76 mm
- supplied with screws for door thickness 40mm
- packaging unit 20 pairs
- Product category : Bathroom ventilator
- Product group : 1500
- Length : 458 mm
- Width : 91 mm
- Height : 38 mm
- Material : Polystyrene
- Surface : high gloss
- Colour : White
