Nylon Care 400 Lift-up shower seat,
with floor support, 480 x 410 x 480 mm, Pastel blue
€685.00*
*Prices excl. VAT
Article number: 0841611014
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- Pad with non-corrosive steel core throughout
- steel reinforced hinges
- with adjustable brake
- locked in place in vertical position
- Floor support with adjustable non-slip floor contact
- Floor support serves as a support in case of insufficient wall condition, thus the resulting forces on the wall fixing can be reduced
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up shower seat
- Product version : with floor support
- Product group : 2000
- Length : 480 mm
- Width : 410 mm
- Height : 480 mm
- Wide seat surface : 480 mm
- Depth of the seat surface : 320 mm
- Material : polyamide
- Surface : high-gloss with textured surface
- Colour : Pastel blue
- Colours available : available in nylon colours
- Loading : max. 175 kg
![](https://extranet.normbau.de/media/76/9c/a2/1704395628/0841611_CAD2D_0101.png)
Downloads
Technical Specifications

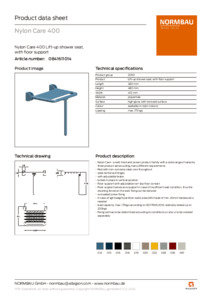

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
Tender specification
