Nylon Care 400 Lift-up shower seat, with floor support, 406 x 410 x 480 mm, Dark grey

€659.00*

*Prices excl. VAT

Colour
Article number: 0841511018
  • Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
  • Pad with non-corrosive steel core throughout steel reinforced hinges with adjustable brake locked in place in vertical position Floor support with adjustable non-slip floor contact Floor support serves as a support in case of insufficient wall condition, thus the resulting forces on the wall fixing can be reduced
  • concealed screw fixing In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • Fixing set has to be determined according to conditions on site, is to be ordered separately
  • Product category : Lift-up shower seat
  • Product version : with floor support
  • Product group : 2000
  • Length : 406 mm
  • Width : 410 mm
  • Height : 480 mm
  • Wide seat surface : 380 mm
  • Depth of the seat surface : 320 mm
  • Material : polyamide
  • Surface : high-gloss with textured surface
  • Colour : Dark grey
  • Colours available : available in nylon colours
  • Loading : max. 175 kg

Downloads

Technical Specifications

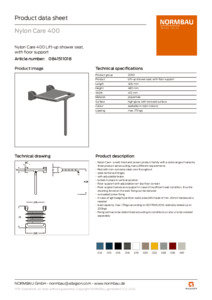

Product data sheet

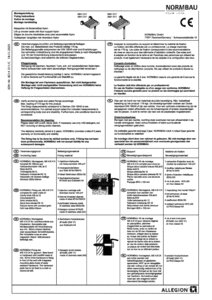

Fixing instruction
Technical Drawing

Images

Product image
Situational image
Partial situational image

Overall download

ZIP file

Brochures & Catalogs

NORMBAU website
