Nylon Care 400 Hanging seat FR,
380 x 515 x 390 mm, Dark grey
€653.00*
*Prices excl. VAT
Article number: 0300772018
Downloads
Technical Specifications

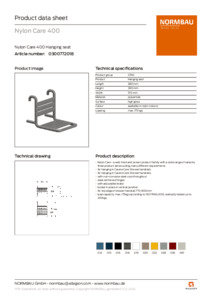

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- for hanging in Cavere Care Shower handrails
- for hanging in Cavere Care Shower handrails
- with non-corrosive steel core throughout
- steel reinforced hinges
- with adjustable brake
- locked in place in vertical position
- for top edge of shower handrail 770-800mm
- load capacity: max. 175kgs according to ISO17966:2016, statically tested up to 200kgs
- Product category : Hanging seat
- Product group : 0700
- Length : 380 mm
- Width : 515 mm
- Height : 390 mm
- Wide seat surface : 380 mm
- Depth of the seat surface : 320 mm
- Material : polyamide
- Surface : high gloss
- Colour : Dark grey
- Colours available : available in nylon colours
- Loading : max. 175 kg
