Nylon Care 400 Grab bar,
300 mm, Dark grey
€101.00*
*Prices excl. VAT
Article number: 0453090018
Downloads
Technical Specifications

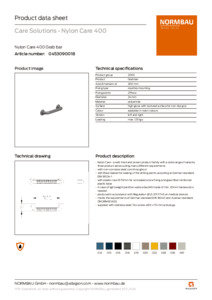

Product data sheet
Fixing instruction and directions for use

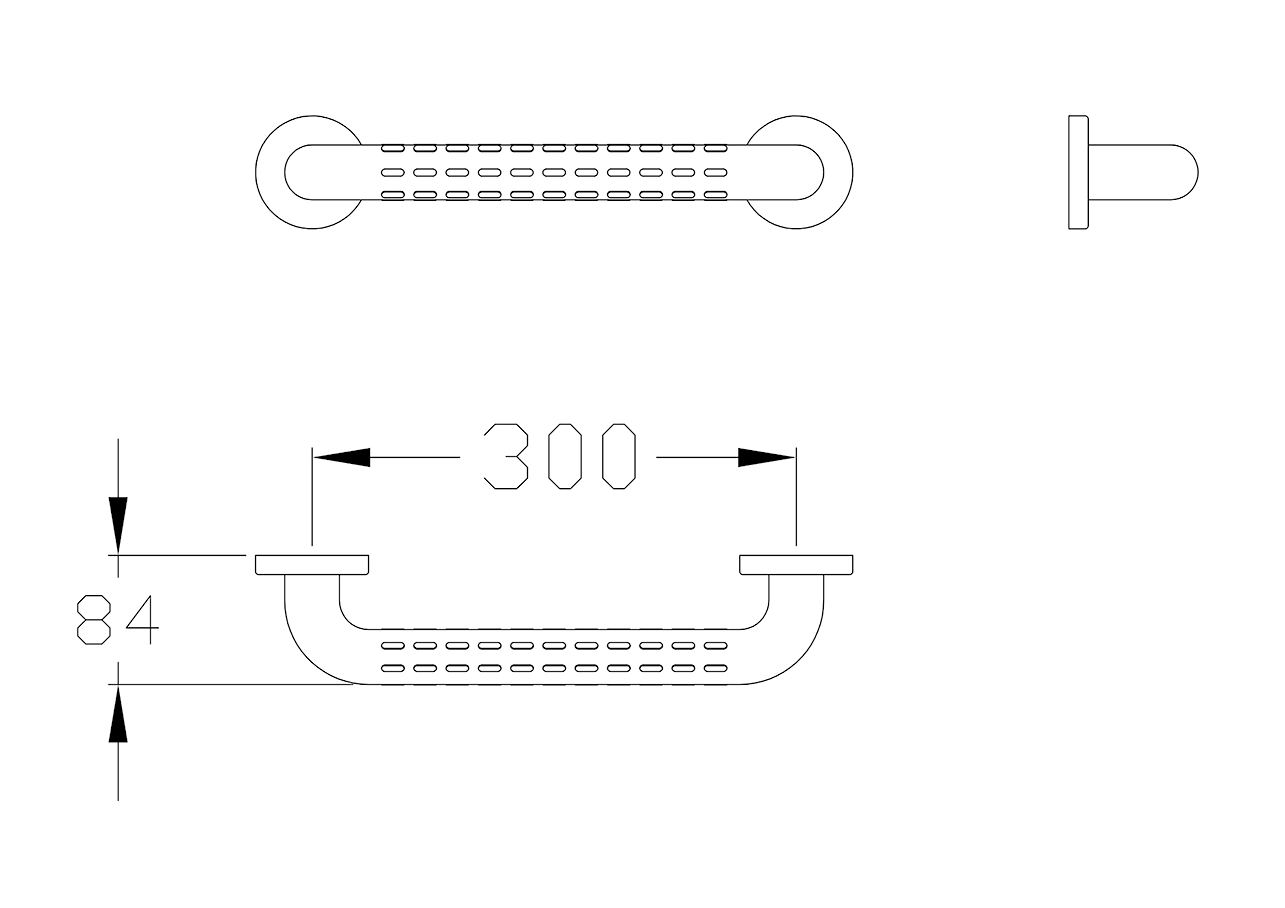

Technical Drawing
Isometric drawing
Images

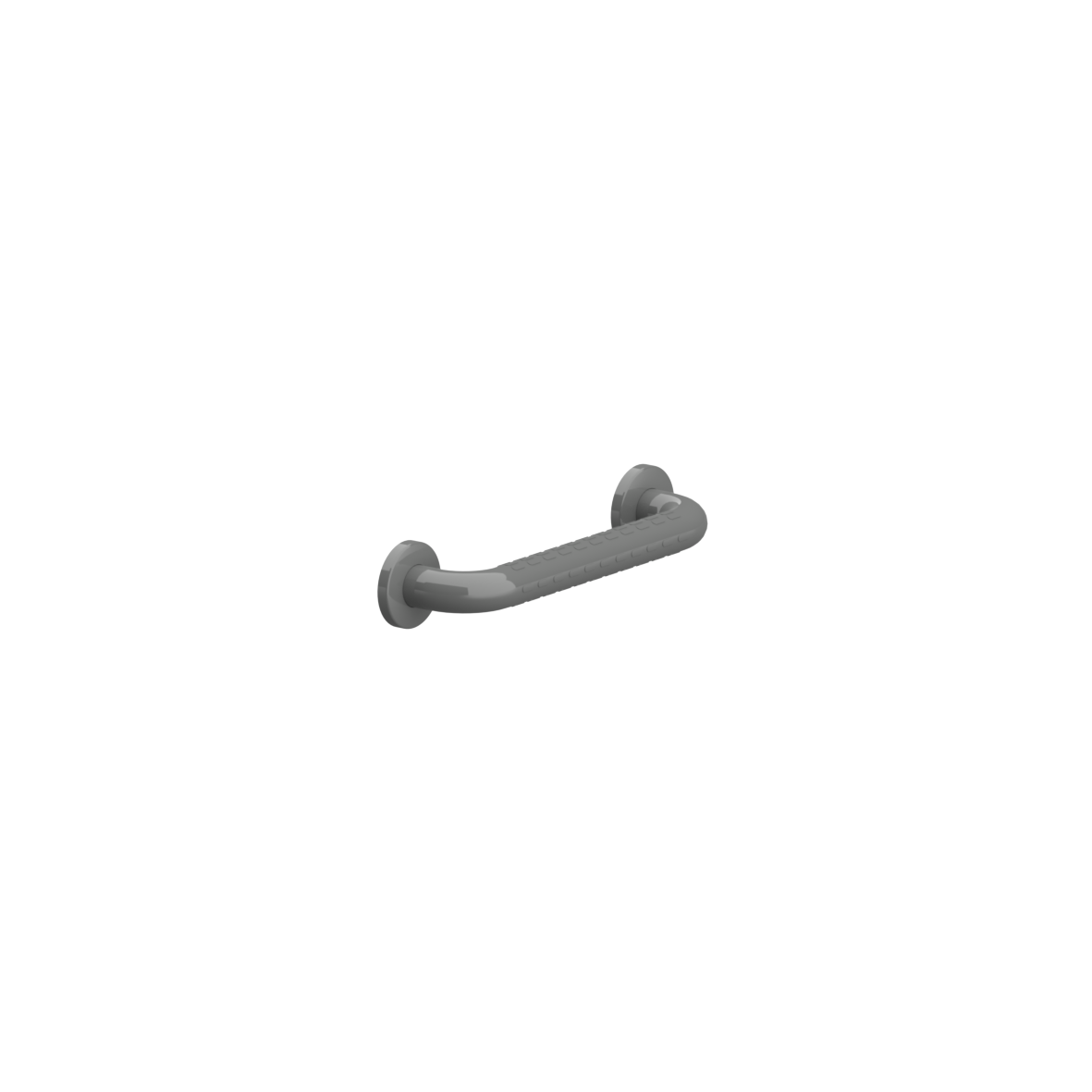

Product image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- with non-corrosive steel core throughout
- with Rose Gasket for sealing of the drilling points according to German standard DIN 18534-1
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Grab bar
- Product group : 2000
- Axle dimension a1 : 300 mm
- Diameter : 34 mm
- Fixing points : 2 St.
- Fixing type : rosettes mounting
- Material : polyamide
- Surface : high-gloss with textured surface for non-slip grip
- Version : left and right
- Colour : Dark grey
- Colours available : available in nylon colours
- Loading : max. 125 kg
