Nylon Care 300 Shower handrail,

427 x 767 mm, Dark grey

€223.00*

*Prices excl. VAT

Colour
Article number: 0300832018
  • Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
  • with non-corrosive steel core throughout
  • with Rose Gasket for sealing of the drilling points according to German standard DIN 18534-1
  • with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • produced in accordance with Regulation (EU) 2017/745 on medical devices
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
  • Product category : Shower handrail
  • Product group : 0700
  • Axle dimension a1 : 427 mm
  • Axle dimension a2 : 767 mm
  • Diameter : 34 mm
  • Fixing points : 3 St.
  • Fixing type : rosettes mounting
  • Material : polyamide
  • Surface : high gloss
  • Version : left and right
  • Colour : Dark grey
  • Colours available : available in nylon colours
  • Loading : max. 175 kg

Downloads

Technical Specifications

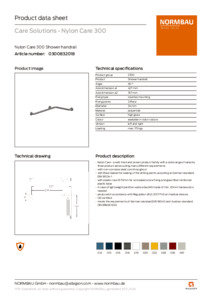

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing

Images

Product image
Situational image
Partial situational image

Overall download

ZIP file
