Nylon Care 300 Grab rail,

90°, 360 x 360 mm, Dark grey

€191.00*

*Prices excl. VAT

Colour
Article number: 0300642018
  • Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
  • with non-corrosive steel core throughout
  • with Rose Gasket for sealing of the drilling points according to German standard DIN 18534-1
  • with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • retrofittable with Toilet roll holder, optional with antibacterial protection 4300665
  • produced in accordance with Regulation (EU) 2017/745 on medical devices
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
  • Product category : Grab rail
  • Product group : 0700
  • Axle dimension a1 : 360 mm
  • Axle dimension a3 : 360 mm
  • Diameter : 34 mm
  • Fixing points : 2 St.
  • Angle : 90 °
  • Fixing type : rosettes mounting
  • Material : polyamide
  • Surface : high gloss
  • Version : left and right
  • Colour : Dark grey
  • Colours available : available in nylon colours
  • Loading : max. 125 kg

Downloads

Technical Specifications

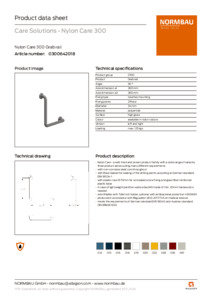

Product data sheet
