Nylon Care 300 Grab rail,
135°, 579 x 336 mm, Dark grey
€208.00*
*Prices excl. VAT
Article number: 0300643018
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- with non-corrosive steel core throughout
- with Rose Gasket for sealing of the drilling points according to German standard DIN 18534-1
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- retrofittable with Toilet roll holder, optional with antibacterial protection 4300665
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Grab rail
- Product group : 0700
- Axle dimension a1 : 579 mm
- Axle dimension a3 : 336 mm
- Diameter : 34 mm
- Fixing points : 3 St.
- Angle : 135 °
- Fixing type : rosettes mounting
- Material : polyamide
- Surface : high gloss
- Version : left and right
- Colour : Dark grey
- Colours available : available in nylon colours
- Loading : max. 125 kg
![](https://extranet.normbau.de/media/57/c8/75/1692856183/0300643_CAD2D_1122.png)
Downloads
Technical Specifications

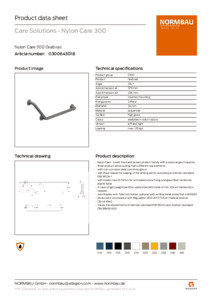

Product data sheet
