Nylon Adjustable foot NY.STF 95.0,

without floor anchor, 70 x 70 x 205 mm, Dark grey

€42.50*

*Prices excl. VAT

Colour
Article number: 0289020018
  • Design partition solutions for doors and partitions made of HPL board material
  • for panel thickness 13 mm, can also be used for panel thickness 10 mm with spacer 0289620
  • consisting of plate holding part, tube, rosette top Ø 70 mm and base
  • height adjustable +/- 15 mm
  • Supplied with threaded bush, a cap and a 5 x 20mm screw for panel fixing
  • The mounting set for floor mounting must be ordered separately
  • adjustable foot without tube is also suitable as an installation aid, the height of the partition wall panels can be adjusted effortlessly
  • Product category : Adjustable foot
  • Product version : without floor anchor
  • Short name : NY.STF 95.0
  • Product group : 2600
  • Length : 70 mm
  • Width : 70 mm
  • Height : 205 mm
  • Material : polyamide
  • Surface : high gloss
  • Colour : Dark grey
  • Colours available : available in nylon colours

Downloads

Technical Specifications

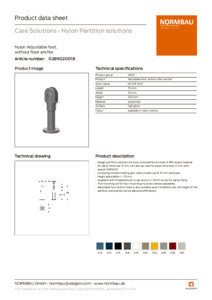

Product data sheet
Technical Drawing
Isometric drawing
