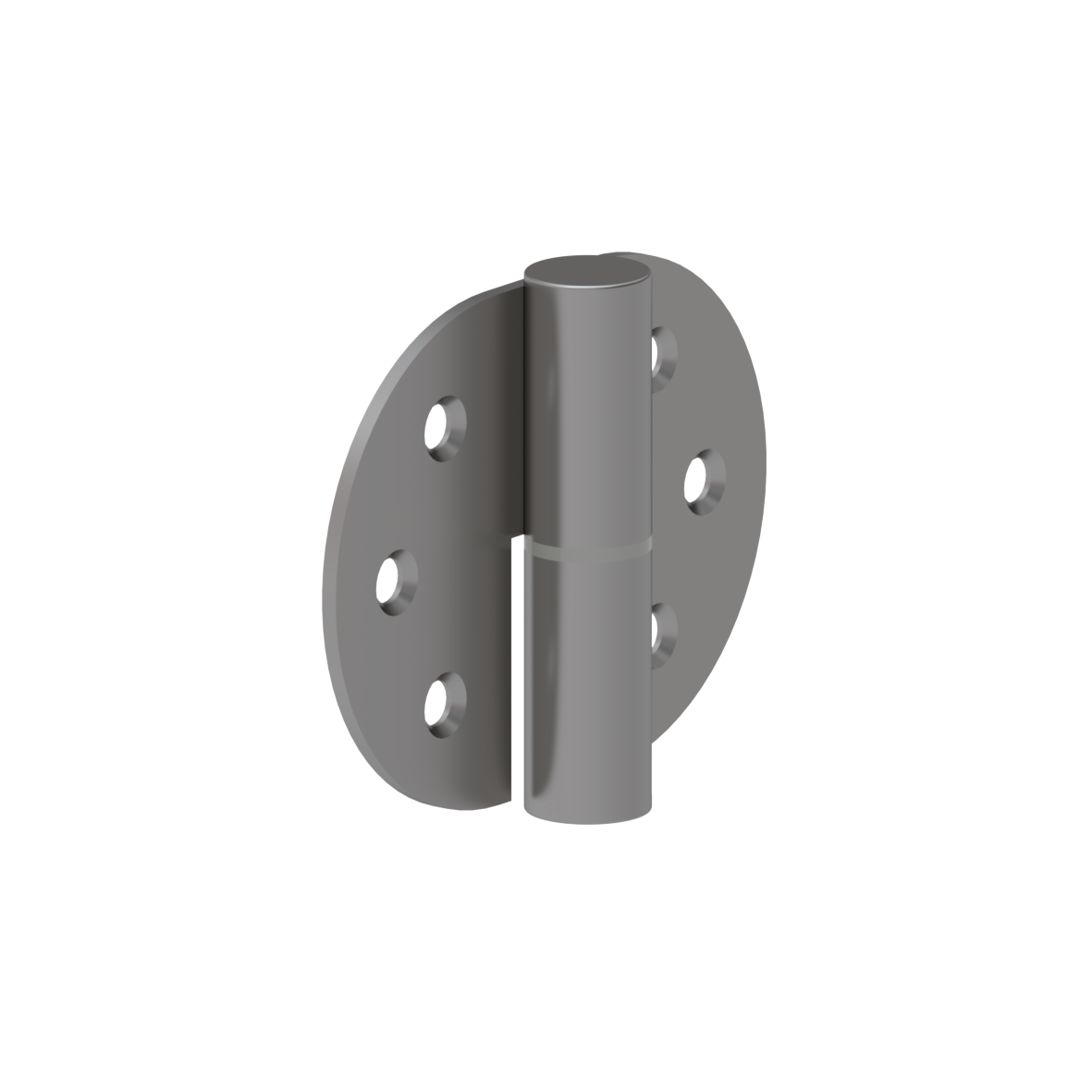

Inox Door hinge NT.TB 78, DIN right, 100 x 20 x 75 mm, Stainless steel

€31.75*

*Prices excl. VAT

Article number: 2290210009
  • Design partition solutions for doors and partitions made of HPL board material
  • Sticker L or R on back
  • visible screw connection, can be covered with cover 2290190 Mounting Recommendation:2 door hinges for door weight up to 40 kg3 door hinges for door weight up to 60 kg
  • Supplied without fixing material
  • Product category : Door hinge
  • Short name : NT.TB 78
  • Product group : 6600
  • Length : 100 mm
  • Width : 20 mm
  • Height : 75 mm
  • Material : stainless steel, material No. 1.4401 (A4, AISI 316)
  • Surface : brushed finish
  • Version : DIN right
  • Colour : Stainless steel

Downloads

Technical Specifications

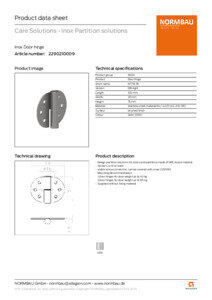

Product data sheet
Fixing instruction

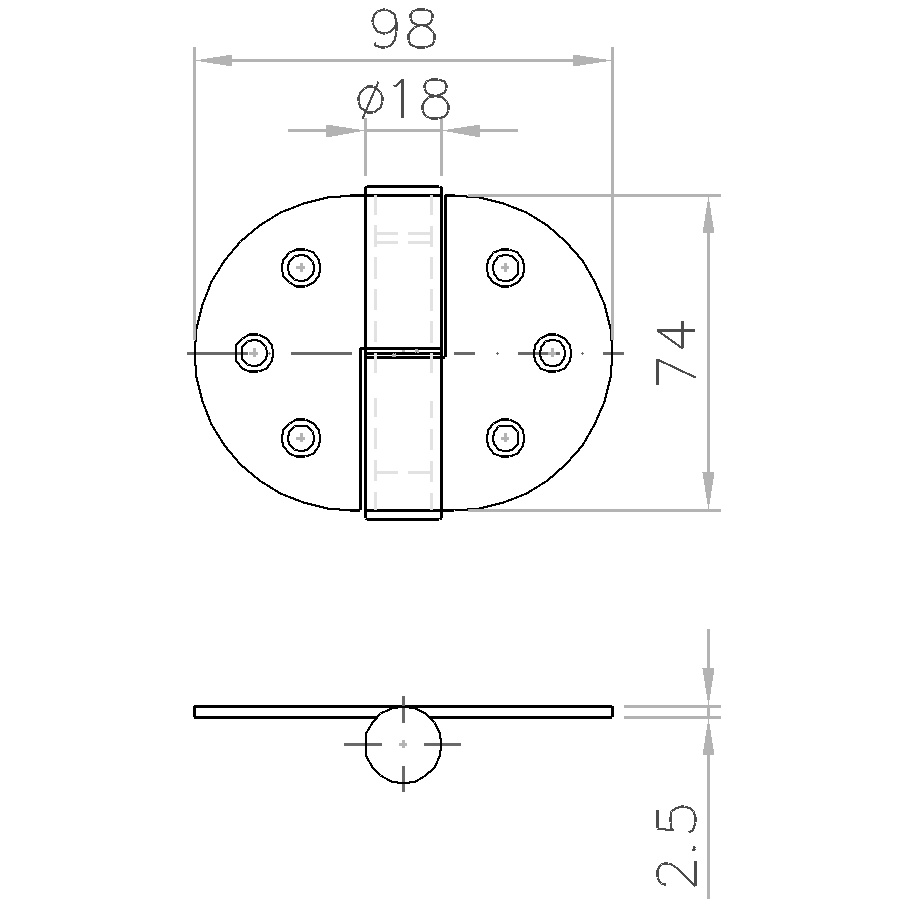

Technical Drawing
