Inox Care Shower handrail,

with shower head rail, left, 1100 x 750 x 1200 mm, Mirror polished

Downloads

Technical Specifications

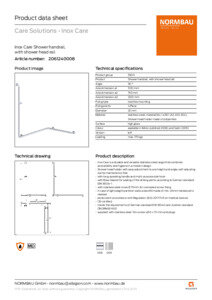

Product data sheet
Fixing instruction and directions for use

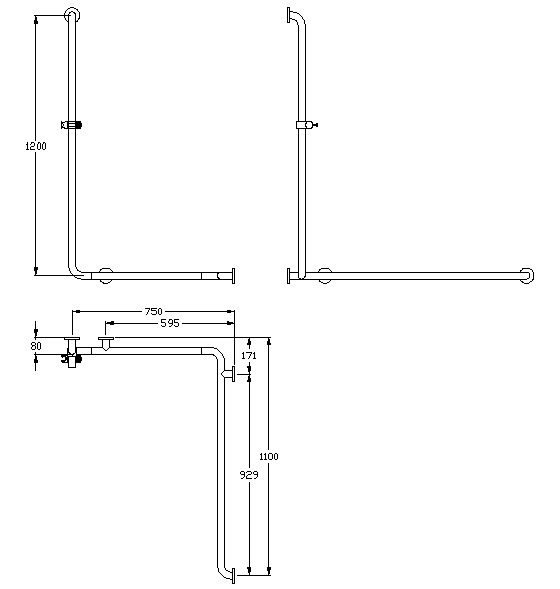

Technical Drawing

Images

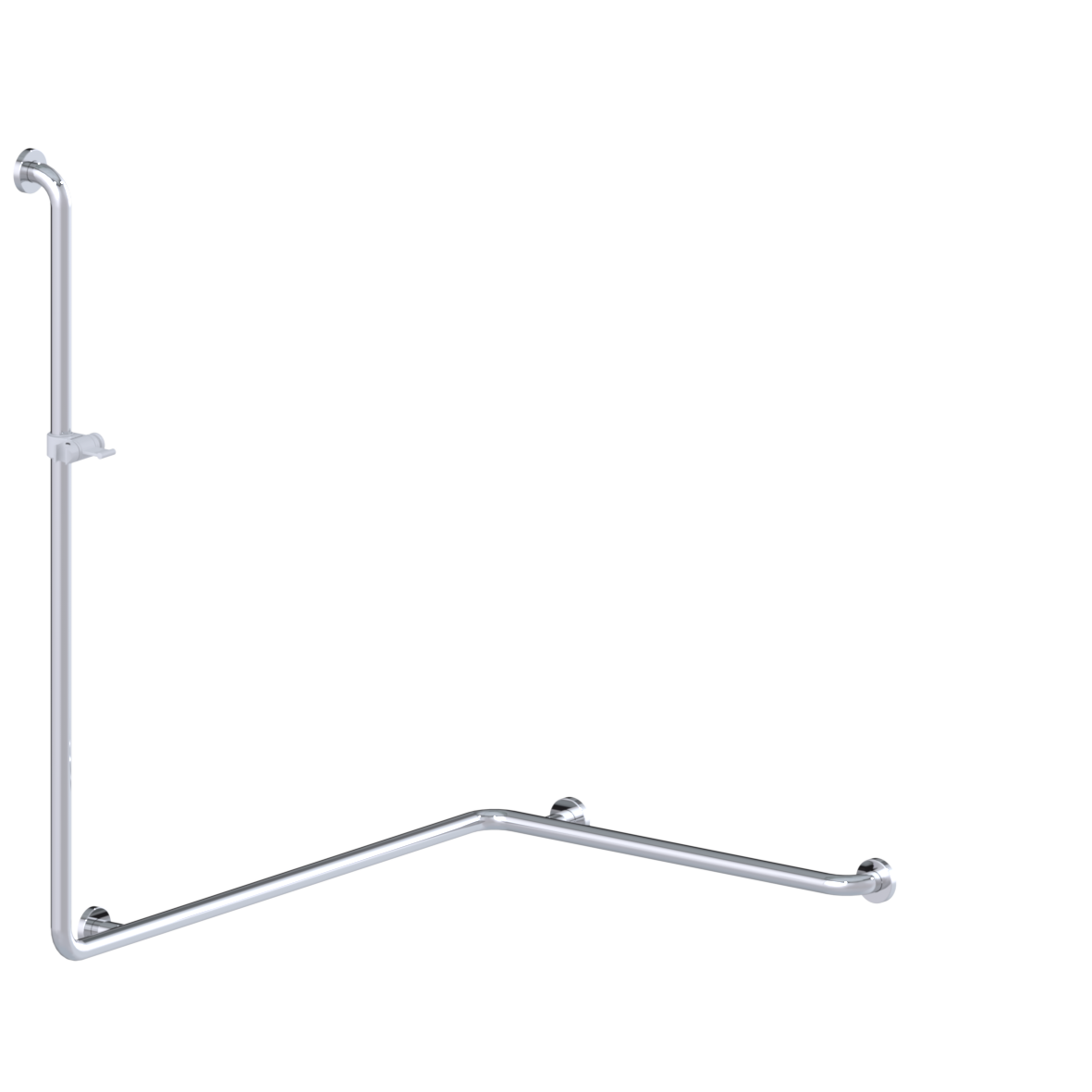

Product image
Situational image
Partial situational image

Overall download

ZIP file
  • Inox Care is a durable and versatile stainless steel range that combines accessibility and hygiene in a modern design
  • Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
  • with long operating handle and multi-purpose side hook
  • with Rose Gasket for sealing of the drilling points according to German standard DIN 18534-1
  • with stainless steel roses Ø 70mm for concealed screw fixing
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • produced in accordance with Regulation (EU) 2017/745 on medical devices
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
  • Product category : Shower handrail
  • Product version : with shower head rail
  • Product group : 5500
  • Axle dimension a1 : 1100 mm
  • Axle dimension a2 : 750 mm
  • Axle dimension a3 : 1200 mm
  • Diameter : 32 mm
  • Fixing points : 4 St.
  • Fixing type : rosettes mounting
  • Additional colour : Brausehalter in Weiß (019)
  • Material : stainless steel, material No. 1.4301 (A2, AISI 304)
  • Material addition : Shower head holder made of polyamide
  • Surface : high gloss
  • Version : left
  • Colour : Mirror polished
  • Colours available : available in Mirror polished (008) and Satin (009)
  • Loading : max. 175 kg
