Inox Care Shower handrail,

750 x 750 mm, Mirror polished

€299.00*

*Prices excl. VAT

Article number: 2058010008

Downloads

Technical Specifications

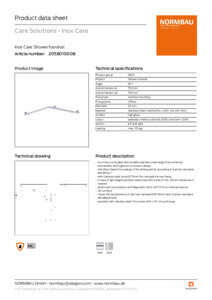

Product data sheet

Fixing instruction and directions for use

Technical Drawing

DWG TIF DXF PNG

Images

Product image

Situational image

Partial situational image

Overall download

ZIP file

Inox Care is a durable and versatile stainless steel range that combines accessibility and hygiene in a modern design
with Rose Gasket for sealing of the drilling points according to German standard DIN 18534-1
with stainless steel roses Ø 70mm for concealed screw fixing
In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
produced in accordance with Regulation (EU) 2017/745 on medical devices
CE-certified
meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs

Product category : Shower handrail
Product group : 5500
Axle dimension a1 : 750 mm
Axle dimension a2 : 750 mm
Diameter : 32 mm
Fixing points : 3 St.
Fixing type : rosettes mounting
Material : stainless steel, material No. 1.4301 (A2, AISI 304)
Surface : high gloss
Version : left and right
Colour : Mirror polished
Colours available : available in Mirror polished (008) and Satin (009)
Loading : max. 175 kg

Tender specification

ausschreiben.de

Brochures & Catalogs

NORMBAU website

Manufacturer

Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
