Inox Care Lift-up shower seat,
410 x 100 x 410 mm, Satin, padded, colour black
€513.00*
*Prices excl. VAT
Article number: 2974010009
Downloads
Technical Specifications

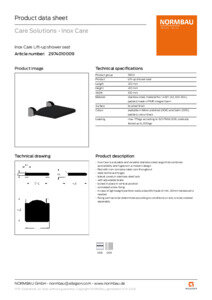

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Images
Product image
Partial situational image
Overall download
ZIP file
- Inox Care is a durable and versatile stainless steel range that combines accessibility and hygiene in a modern design
- Pad with non-corrosive steel core throughout
- steel reinforced hinges
- lateral covers in stainless steel look
- with adjustable brake
- locked in place in vertical position
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- load capacity: max. 175kgs according to ISO17966:2016, statically tested up to 200kgs
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up shower seat
- Product group : 5500
- Length : 410 mm
- Width : 100 mm
- Height : 410 mm
- Wide seat surface : 410 mm
- Depth of the seat surface : 365 mm
- Additional colour : padded, colour black
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Material addition : padded made of PUR integral foam
- Surface : brushed finish
- Colour : Satin
- Loading : max. 175 kg
