Inox Adjustable foot NT.STF 95.2,
70 x 70 x 190 mm, Satin
€67.50*
*Prices excl. VAT
Article number: 2289020009
Downloads
Technical Specifications

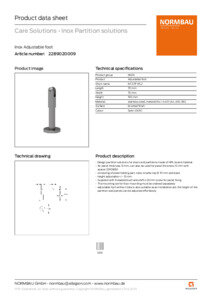

Product data sheet
Technical Drawing
Isometric drawing
Images
Product image
Overall download
ZIP file
- Design partition solutions for doors and partitions made of HPL board material
- for panel thickness 13 mm, can also be used for panel thickness 10 mm with spacer 2290880
- consisting of plate holding part, tube, rosette top Ø 70 mm and base
- height adjustable +/- 15 mm
- Supplied with threaded bush and a M5 x 20mm screw for panel fixing
- The mounting set for floor mounting must be ordered separately
- adjustable foot without tube is also suitable as an installation aid, the height of the partition wall panels can be adjusted effortlessly
- Product category : Adjustable foot
- Short name : NT.STF 95.2
- Product group : 6600
- Length : 70 mm
- Width : 70 mm
- Height : 190 mm
- Material : stainless steel, material No. 1.4401 (A4, AISI 316)
- Surface : brushed finish
- Colour : Satin
