Eco Care Shower handrail,
with shower head rail, 750 x 750 x 1200 mm, White
€249.00*
*Prices excl. VAT
Article number: 1486375019
Downloads
Technical Specifications

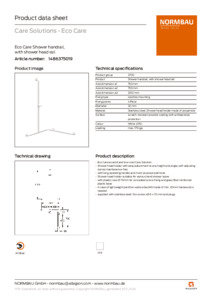

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Eco Care as solid and low-cost Care Solution
- Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
- with long operating handle and multi-purpose side hook
- Shower head holder suitable for various hand shower types
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- for the use of rose gaskets 2053601/2053610 geeignet
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Shower handrail
- Product version : with shower head rail
- Product group : 3700
- Axle dimension a1 : 750 mm
- Axle dimension a2 : 750 mm
- Axle dimension a3 : 1200 mm
- Diameter : 32 mm
- Fixing points : 4 St.
- Fixing type : rosettes mounting
- Material : Stainless steel
- Material addition : Shower head holder made of polyamide
- Surface : scratch-resistant powder coating with antibacterial protection
- Colour : White
- Loading : max. 175 kg
