Eco Care Shower handrail, with shower head rail, 500 x 1200 mm, White

€174.00*

*Prices excl. VAT

Article number: 1485350019
  • Eco Care as solid and low-cost Care Solution
  • Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
  • with long operating handle and multi-purpose side hook
  • Shower head holder suitable for various hand shower types
  • with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • for the use of rose gaskets 2053601/2053610 geeignet
  • supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
  • Product category : Shower handrail
  • Product version : with shower head rail
  • Product group : 3700
  • Axle dimension a1 : 500 mm
  • Axle dimension a3 : 1200 mm
  • Diameter : 32 mm
  • Fixing points : 3 St.
  • Fixing type : rosettes mounting
  • Material : stainless steel, material No. 1.4301 (A2, AISI 304)
  • Material addition : Shower head holder made of polyamide
  • Surface : scratch-resistant powder coating with antibacterial protection
  • Version : left and right
  • Colour : White
  • Loading : max. 175 kg

Downloads

Technical Specifications

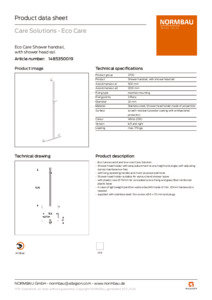

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing

Images

Product image
Situational image
Partial situational image

Overall download

ZIP file
